HotShot ABi On-Stage Two Signal Source Input Selector

« return to previous page

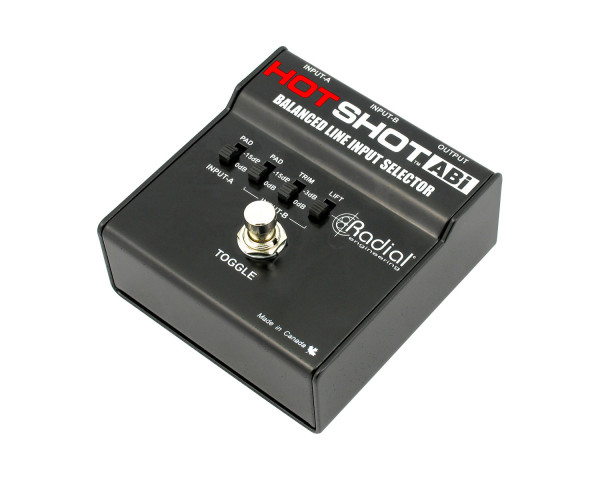

Radial HotShot ABi On-Stage Two Signal Source Input Selector - Main Image
Radial HotShot ABi On-Stage Two Signal Source Input Selector - Image 1
Radial HotShot ABi On-Stage Two Signal Source Input Selector - Image 2
Price:
RRP: £151.18 inc VAT
Code:
RADHSABI
Manufacturer Code:
R800-1508-00
Brand:
Radial

Quantity required:

Main Features

  • 100% passive - does not require power
  • Built-in pad for high output sources
  • Built-in trim to balance input levels
  • Durable 14 gauge steel construction
  • Heavy duty latching toggle switch
  • Ultra compact – fits anywhere
Share:

HotShot ABi On-Stage Two Signal Source Input Selector

The HotShot ABi makes it easy to select between two balanced inputs on stage, with a single latching footswitch to toggle from one source to the other. This allows an artist to switch between two dynamic microphones during a performance, freeing up input channels on your mixer. The latching footswitch also opens the door for other useful applications, including using the ABi as a mute to turn off a microphone, select between two wireless receivers, or switch between two mono playback devices.

Product Features

  • 100% passive - does not require power
  • Built-in pad for high output sources
  • Built-in trim to balance input levels
  • Durable 14 gauge steel construction
  • Heavy duty latching toggle switch

Applications

  • Toggle between two microphones using one channel
  • Use live to select between two instruments with DIs
  • Select between two balanced audio tracks
  • Mutes a signal such as talk-back mic

Cool Factors

  • Plug & play easy to use
  • Ultra compact – fits anywhere
  • Various level controls on board
  • Control PA and mics while performing live
  • 3 year transferable warranty

Product Specifications

  • Audio circuit type:  Passive, true-bypass
  • Frequency response:  20Hz ~ 20kHz
  • Dynamic range:  Unlimited
  • Input Connectors:  Two XLR inputs
  • Output Connectors:  One XLR output
  • Construction:  14-Gauge Steel
  • Size (L x W x D):  3.9" x 3.6" x 2" (99 x 92 x 51mm)
  • Weight:  1.25 lb (0.56 kg)
  • Conditions:  For use in dry locations only between 5°C and 40°C
  • Warranty:  Radial 3-year, transferable
