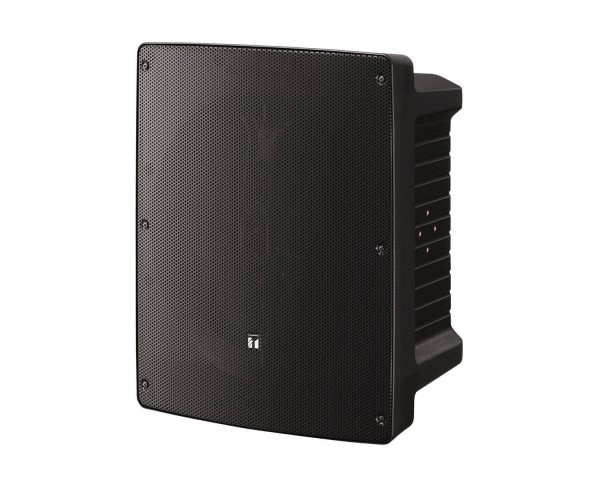

HS1500BT 15" Compact Coaxial Array Speaker 100V Black

« return to previous page
TOA HS1500BT 15 Compact Coaxial Array Speaker 100V Black - Main Image
TOA HS1500BT 15 Compact Coaxial Array Speaker 100V Black - Image 1
TOA HS1500BT 15 Compact Coaxial Array Speaker 100V Black - Image 2
TOA HS1500BT 15 Compact Coaxial Array Speaker 100V Black - Image 3
Price:
RRP: £510.00 inc VAT
Code:
TOAHS1500BT
Manufacturer Code:
HS-1500BT
Brand:
TOA

Quantity required:

Main Features

  • High quality sound
  • Built-in overload protection circuitry for the tweeters
  • Twin input terminal connections
  • Compact light weight enclosure
  • Wedge-shape enclosure enables use as a floor monitor
  • Screwdriver-adjustable impedance selection
Share:

HS-1500BT 15" Compact Coaxial Array Speaker 100V Black

One of the most difficult speaker requirements to satisfy is a cost-effective mid-size speaker system that offers high quality sound no matter what the application. TOA HS-Series speakers are equipped with narrow-directivity control (90° horizontal × 40° vertical). This useful feature allows tailoring the speaker's dispersion characteristics to better suit the acoustic environment in which it is installed. The versatile HS-Series is compatible for use with 100V/70V lines for distributed applications. The HS-Series speakers are exceptional in offering useful features at an attractive price.

Product Features

  • 15“ LF speaker
  • Well-controlled sound coverage: 90° horizontal x 40° vertical
  • High impedance version
  • Easy to carry and easy to install, with handle for easy transportability
  • Twin input terminal connections (Speakon® and screw terminals) for fixed and mobile installation
  • Size and weight have been reduced thanks to the use of the array tweeter
  • Can be used as a floor monitor

Product Specifications

General

  • Enclosure: Sealed type
  • Rated Input: 60 W (High Impedance)
  • Power Handling Capacity: Continuous pink noise: 100 W (Low Impedance). Continuous program: 300 W (Low Impedance)
  • Rated Impedance: 8 Ω. 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W). 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W)
  • Sensitivity: 98 dB (1 W, 1 m)
  • Frequency Response: 60 - 20,000 Hz
  • Crossover Frequency: 3 kHz
  • Directivity Angle: Horizontal: 90゜, Vertical: 40゜
  • Speaker Component: Low frequency: 38 cm (15) cone-type
  • Input Terminal: NEUTRIK NL4MP Speakon and M4 screw terminal, distance between barriers: 9 mm (0.35)"

Physical & Dimensions

  • Operating Temperature: -10℃ to +50℃ (14゜F to 122゜F)
  • Dimensions: 451 (W) × 560 (H) × 400 (D) mm (17.76 × 22.05" × 15.75")"
  • Weight: 14 kg (30.86 lb)

Product Downloads
