Hydro IP Tester Portable Pressure Tester for IP-Rated Products

« return to previous page
ADJ Hydro IP Tester Portable Pressure Tester for IP-Rated Products - Main Image
ADJ Hydro IP Tester Portable Pressure Tester for IP-Rated Products - Image 1
ADJ Hydro IP Tester Portable Pressure Tester for IP-Rated Products - Image 2
ADJ Hydro IP Tester Portable Pressure Tester for IP-Rated Products - Image 3
ADJ Hydro IP Tester Portable Pressure Tester for IP-Rated Products - Image 4
ADJ Hydro IP Tester Portable Pressure Tester for IP-Rated Products - Image 5
ADJ Hydro IP Tester Portable Pressure Tester for IP-Rated Products - Image 6
Price:
RRP: £2,462.40 inc VAT
Code:
ADJHYDROIPT
Manufacturer Code:
1322000062
Brand:
ADJ

Quantity required:

Main Features

  • Mobile IP Fixture Vacuum and Pressure Tester
  • Compatible with any IP Fixture such as ADJ's Hydro Series
  • 20 available profile slots
  • Manual and Auto Testing Modes
  • Easy to navigate LCD Control Menu Display
  • Fixture Serial Number Input for Tracking Test Results
Share:

Hydro IP Tester Portable Pressure Tester for IP-Rated Products

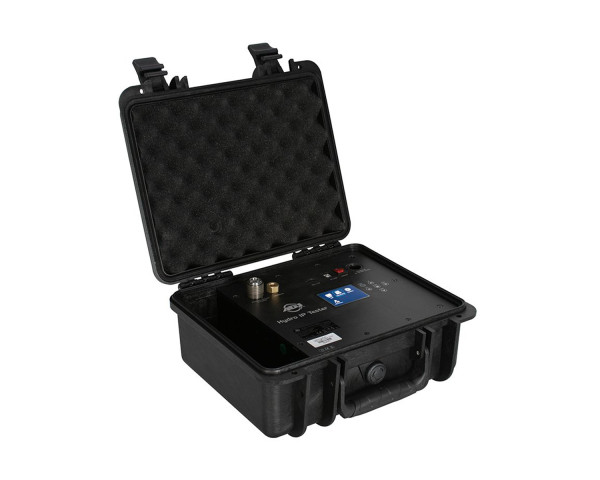

ADJ's Hydro IP Tester is a mobile service tool specifically designed to assess the integrity of compatible IP-rated lighting fixtures, including ADJ's Hydro series fixtures. This versatile device is capable of both vacuuming and detecting pressure leaks, making it ideal for use after a fixture has been opened for tasks such as lamp replacement, gobo replacement, or regular maintenance.

The Hydro IP Tester boasts several impressive features. It comes in a durable flight case that is easy to transport. The user-friendly interface features a 6-button LCD control menu display, allowing for effortless navigation. Progress bars on the display indicate the remaining test time, ensuring efficient testing. The Micro SD card slot provides a convenient means to update the testers software, while the USB connection allows for PC software control.

Included with the Hydro IP Tester are a 3-5 ft (0.9-1.5m) coiled air hose with a quick-connect fitting, a threaded M12 brass nozzle with a push-to-connect fitting, two M12 x 1.5 nylon bolts, a 6ft (1.8m) USB cable, a 5ft (1.5m) IP65 Locking Power Cable, a Micro SD card, and a durable, easy-to-carry case.

Product Features

  • Mobile IP Fixture Vacuum and Pressure Tester
  • Compatible with any IP Fixture such as ADJ's Hydro Series
  • 20 available profile slots
  • Manual and Auto Testing Modes
  • Easy to navigate LCD Control Menu Display
  • Fixture Serial Number Input for Tracking Test Results
  • Micro SD Card to Store Test Results
  • USB Connection for PC Software Control (Windows)
  • Easy To Carry Rugged Case

Product Specifications

Control / Connections

  • LCD Control Menu Display
  • PC SOFTWARE (Win 7, 8, 8.1, 10)
  • Air In/Out Vent
  • Quick-Release Air Hose Fitting
  • Micro SD Card Slot
  • USB B Port
  • IP65 Power In

Electrical

  • AC 100-240V - 50/60Hz
  • 40W Max Power Consumption

Physical & Dimensions

  • Length:  16.5” (419.1mm)
  • Width:  6.5” (165.1mm)
  • Vertical Height:  14.25” (362mm)
  • Weight:  15.4 lbs. (7.0kg)

What's in the Box?

  • 3-5ft (0.9-1.8m) Air Hose with Quick-Connect Fitting
  • M12 Threaded Brass Nozzle with Push-to-Connect Fitting
  • (x2) M12 x 1.5 Orange Colored Nylon Bolt
  • 6ft (1.8m) USB Cable
  • 5ft (1.5m) IP65 Power Cable
  • Micro SD Card (4GB min)

Product Downloads
