IDS108-I 8

« return to previous page

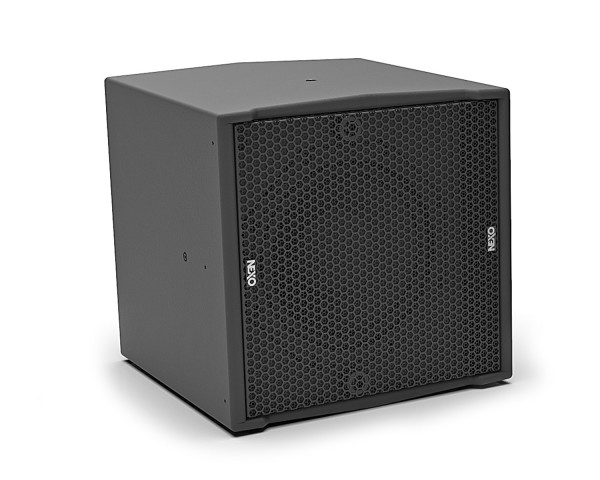

NEXO IDS108-I 8 Compact Installation Subwoofer 300W Black - Image 1

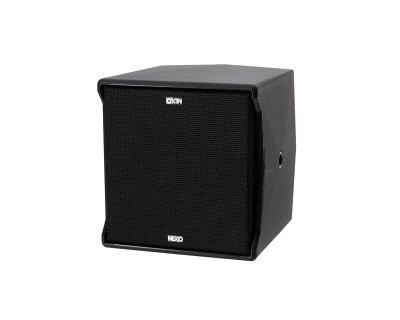

NEXO IDS108-I 8 Compact Installation Subwoofer 300W Black - Image 2

NEXO IDS108-I 8 Compact Installation Subwoofer 300W Black - Image 3

Price:: RRP: £794.59 inc VAT
Code:: NEXIDS108
Manufacturer Code:: 01IDS.108-I
Brand:: NEXO

Main Features

A compact, lightweight sub.
High power, compact sub that can be stacked or hanged, with or without its companion main element the ID14.
Light and easy to hang with dedicated bracket.
Comprehensive range of accessories for deploying the IDS108 in a wide variety of applications.
Installation version
Finish: Black

IDS108 8" Compact Installation Subwoofer 300W – Black

The IDS108 is the ideal companion for the ID14 compact point source, sharing same aesthetic design and flyable together from the same point.

The IDS108 is only 305mm x 307mm x 305mm (12.0” x 12.1” x 12.0”) and weighs only 8 kg (17,6 lbs). The recommended ratio is 1 x IDS108 for 1 x ID14. Using a high efficiency bass-reflex design, the NEXO IDS108 features a long excursion 8-inch Neodymium driver precisely tuned to match the frequency response of the ID14. The result is a particularly articulate low end with a very high output level for its size.

The IDS108 features two M10 threaded inserts to be used primarily with the dedicated U-bracket (IDT-HBRK108), with or without the ID14 linked to the IDS108 through a discrete bracket (IDI-14TO108). Once turned a quarter turn on its side, the IDS108 can then reuse one of the M10 threaded inserts to fit a slim pole stand with integrated speaker wire that will nicely fit an ID14 speaker directly without additional bracket.

The IDS108 shares the same phase response as other NEXO speakers, making it extremely easy to mix with other NEXO systems, e.g with the larger MSUB18 or with other NEXO subs, without risk of comb filtering or requiring complex electronic adjustment

Product Features

A compact, lightweight sub.
High power, compact sub that can be stacked or hanged, with or without its companion main element the ID14.
Light and easy to hang with dedicated bracket.
Comprehensive range of accessories for deploying the IDS108 in a wide variety of applications.
Closed design ensuring IP54 certification
Installation version
Finish: Black

Product Specifications

IDS108 with NEXO Processing

Frequency Response @-6 dB: 63 Hz to 150 kHz
Sensitivity 1W@1m: 95 dB
Peak SPL@1m: 112 dB
Available Crossover Frequencies: 63-120, 63-150 Hz
Nominal Impedance: 8 Ω
Recommended Power: 300 to 500 Watts / 8 Ohms

General

Components: 1 x 8” 8 Ohms long excursion Neodymium driver
Connectors (Install version) : 1 x Cable gland with 2 cores cable
Rigging points: 2x M10 Threaded inserts + 2 x M6 threaded inserts
IP Rating: IP54

Physical

Construction: Baltic Birch Plywood
Finish: Black or White structural paint
Front Finish (Install version) : UV Resistant acoustic fabric fitted Magnelis® front grill
Operating temperature range: 0°C - 40 °C (32° F - 104° F)
Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
Height x Width x Depth: 305mm x 307mm x 305mm (12.0” x 12.1” x 12.0”)
Weight: Net: 8 kg / 17.6 lbs

System Operation

Recommended powering solution: DTDcontroller + DTDAMP4x0.7 : up to 2 x IDS108 per channel
Optional powering solution:
- DTDcontroller + DTDAMP4x1.3 : up to 2 x IDS108 per channel
- NXAMP4x1mk2 Powered TDcontroller: up to 3 x IDS108 per channel
- NXAMP4x2mk2 Powered TDcontroller: up to 4 x IDS108 per channel
- NXAMP4x4mk2 Powered TDcontroller: up to 4 x IDS108 per channel
