Main Features
Passive 2-way coaxial loudspeaker
87dB continuous SPL output
Removable mounting U-bracket
100 W RMS / 400 W peak power handling
Wide 80º x 80º frequency consistent dispersion pattern,

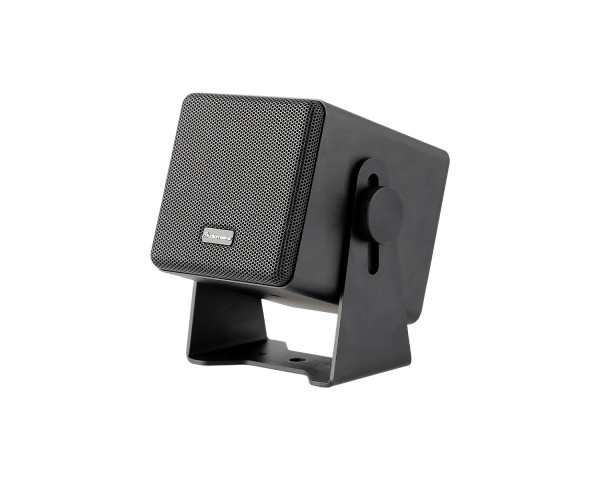

The miniature INSTACUBE 4 aluminium enclosure, measures just 145 x 156 x 143 mm, complete with its removable mounting U-bracket. With a custom designed 4” neodymium, 2-way coaxial loudspeaker, comprising a 35 mm voice coil MF and 1.3” PEEK high-performance composite film diaphragm HF driver arrangement, the INSTACUBE 4 boasts 100 W rms / 400 W peak power handling, up to 87dB continuous SPL output, and a 100 Hz – 20 kHz (-10 dB) frequency response.
With a wide 80º x 80º frequency consistent dispersion pattern, the INSTACUBE 4 is intended for a wide variety of nearfield enterprise applications: including retail, hospitality, healthcare, fitness, transportation, logistical, exhibition, meeting, presentation and conferencing venues and environments, education and learning facilities.
Product Features
Passive 2-way coaxial loudspeaker
87dB continuous SPL output
Removable mounting U-bracket
100 W RMS / 400 W peak power handling
Wide 80º x 80º frequency consistent dispersion pattern,
Finish: Black
Product Specifications
Type: Passive 2-way coaxial loudspeaker
Frequency response(-10dB): 100Hz - 20kHz
Rated Power: 100W (RMS) / 400W (peak)
Max SPL (@1m): 113dB (peak)
Coverage (H × V): 80° × 80°
LF Transducer: 4”
HF Transducer: 1.3”
Sensitivity(1m@1W): 87dB
Connectors: 2 × 4 pole speaker connectors, 1 × 4 pole Phoenix connector
Dimensions (W × H × D): 145mm × 156mm × 143mm (including bracket)
