IP58650 Lightweight Quick Trigger Clamp 38-51mm WLL 50KG

« return to previous page

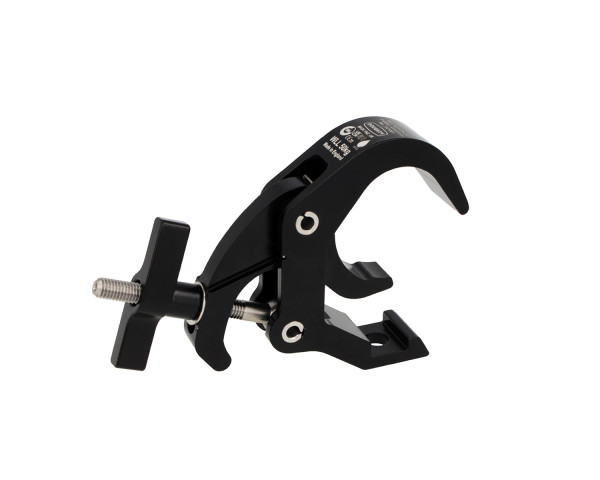

Doughty IP58650 Lightweight Quick Trigger Clamp 38-51mm WLL 50KG - Main Image
Doughty IP58650 Lightweight Quick Trigger Clamp 38-51mm WLL 50KG - Image 1
Doughty IP58650 Lightweight Quick Trigger Clamp 38-51mm WLL 50KG - Image 2
Doughty IP58650 Lightweight Quick Trigger Clamp 38-51mm WLL 50KG - Image 3
Price:
RRP: £33.60 inc VAT
Code:
DOUIP58650
Manufacturer Code:
IP58650
Brand:
Doughty

Quantity required:

Main Features

  • Tube Diameter:  Ø38 - 51mm (1.50" - 2.01")
  • 25mm Wide AW6082 T6 Aluminium Main Body
  • Grade 316 Stainless Steel Eyebolt Assembly
  • Supplied with M10 x 35 Bolt & Wing Nut
  • TÜV Approved
  • 50Kg WLL
Share:

IP58650 Lightweight Quick Trigger Clamp 38-51mm WLL 50KG

Part of their new All Weather clamp range manufactured with 316 stainless steel and AW6082 T6 grade parts which make it ideal for use at outdoor events.

A high tensile extruded aluminium quick trigger clamp that is suitable for 38mm to 51mm diameter tubes. It has a WLL of 50Kg and is 25mm wide. Slotted to hold captive an M10 nut or bolt head and supplied with an A4 grade stainless steel M10 X 35 bolt and wing nut.

Ideal for hanging moving heads on trussing as it will not damage the cords. Available in powder coated black.

Product Features

  • Tube Diameter:  Ø38 - 51mm (1.50" - 2.01")
  • 25mm Wide AW6082 T6 Aluminium Main Body
  • Grade 316 Stainless Steel Eyebolt Assembly
  • Supplied with M10 x 35 Bolt & Wing Nut
  • TÜV Approved
  • 50Kg WLL

Product Specifications

  • Tube Diameter:  Ø38 - 51mm (1.50" - 2.01")
  • Materials:
    • Main Body - AW6082 T6 Aluminium
    • Roll Pins - 304 Stainless Steel
    • Eyebolt Assy - Grade 316 Stainless Steel
  • Finish:  Powder Painted Satin Black
  • Max Tightening Torque:  Hand-tight Only
  • Fixings:
    • A4 Grade Stainless Steel
    • Supplied with M10 x 35 Bolt & Wing Nut
  • WLL:  50Kg
  • Weight:  0.29Kg (0.64 lbs)
  • Factor of Safety:  5:1
  • Approval:  TÜV Approved
