IP588601 All Weather Trigger Clamp Stainless Steel Black

« return to previous page

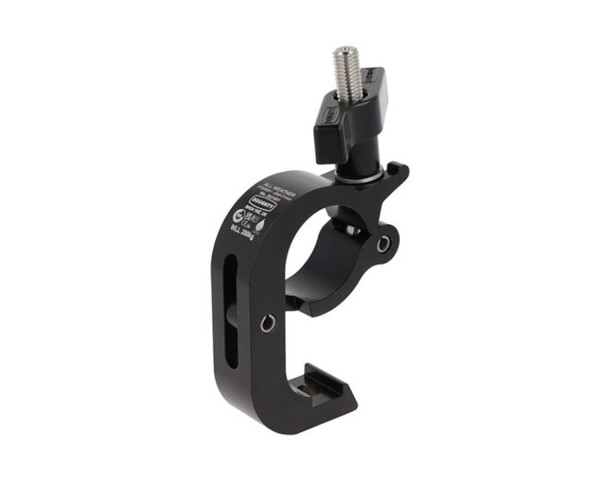

Doughty IP588601 All Weather Trigger Clamp Stainless Steel Black - Main Image
Doughty IP588601 All Weather Trigger Clamp Stainless Steel Black - Image 1
Doughty IP588601 All Weather Trigger Clamp Stainless Steel Black - Image 2
Price:
RRP: £43.20 inc VAT
Code:
DOUIP588601
Manufacturer Code:
IP588601
Brand:
Doughty

Quantity required:

Main Features

  • Part Nos:  IP588601
  • Tube Diameter:  Ø48 - 51mm
  • Materials
  • Main Body - AW6082 T6 Aluminium
  • Roll Pins - Stainless Steel
  • Eyebolt Assy - Grade 316 Stainless Steel
Share:

IP588601 All Weather Trigger Clamp Stainless Steel Black

Part of our new All Weather clamp range manufactured with 316 stainless steel and AW6082 T6 grade aluminium parts which make it ideal for use at outdoor events.

A high tensile extruded aluminium trigger clamp that is suitable for 48mm to 51mm diameter tubes. It has a WLL of 200Kg and is 30mm wide. Slotted to hold captive an M12 nut or bolt head.

Ideal for use on trussing as it will not damage the cords. Available in a powder coated black finish.

Product Features

  • Part Nos:  IP588601
  • Tube Diameter:  Ø48 - 51mm
  • Materials
  • Main Body - AW6082 T6 Aluminium
  • Roll Pins - Stainless Steel
  • Eyebolt Assy - Grade 316 Stainless Steel
  • Finish:  Powder Painted Satin Black
  • Max Tightening Torque:  Hand-tight Only
  • Fixings:  To be used with M12 Fixings
  • WLL:  200Kg
  • Weight:  0.50Kg
  • Factor of Safety:  5:1
  • Approval: TÜV Approved
