IP6-1122WR66 12

Price:: RRP: £3,900.00 inc VAT
Code:: COMIP61122WR66
Manufacturer Code:: 911.1048.900
Brand:: Community

Main Features

Lightweight and compact with deep LF extension
Large rotatable waveguide with individually voiced crossover, single amp / biamp selectable
Innovative low profile modular bracket systems create elegant arrays with simplified installation
Finish: Grey
IP Rating: IP55
Coverage: 60°x 60°

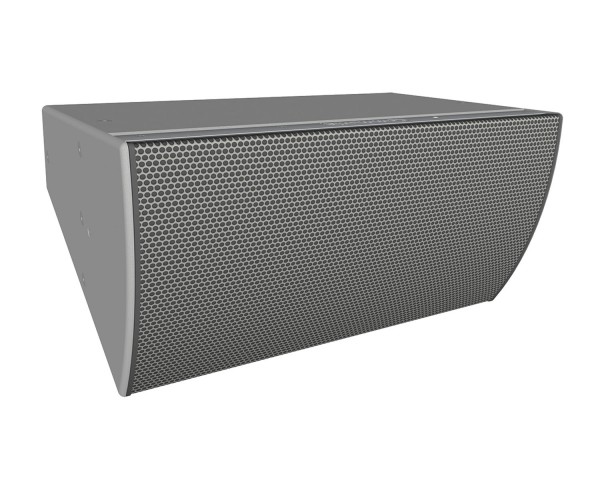

IP6-1122WR66 12" 2-Way Install Loudspeaker 500W IP55 - Grey

I SERIES Point Source 600 weather-resistant loudspeakers provide excellent acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES includes a wide variety of rotatable coverage patterns and an easily installed U-Bracket that accelerate system design and system commissioning.

FEA-optimised ferrite motors, mechanically mirrored suspension and advanced cooling system combine to provide linear performance with minimal power compression. The custom long-excursion LF driver delivers deep bass response and a detailed midrange at maximum SPL levels. The HF driver delivers excellent sound quality from a hybrid diaphragm of deep drawn titanium and resonance-absorbing polyimide, coupled to a patented low compression, low resonance phase plug for very low distortion performance with abundant headroom.

The rotatable 13-inch (330mm) HF waveguide provides well-defined coverage and a smooth off-axis response that enhances arrayability. Individually voiced crossovers produce proper beamwidth matching transitions and identical sonic signatures, permitting horn patterns to be mixed throughout an installation. Factory-standard passive or optional biamp operating modes further expand performance capabilities. The IP6-1122WR includes weather-resistant hardware and grille, with high-strength PolyGlas™ cabinet.

Product Features

Long excursion ferrite LF driver with FEA-optimised motor and symmetric movement suspension
3-inch voice coil, 1.4” exit HF driver; hybrid titanium/polyimide diaphragm on low compression phase plug
Lightweight and compact with deep LF extension
Large rotatable waveguide with individually voiced crossover, single amp / biamp selectable
Innovative low profile modular bracket systems create elegant arrays with simplified installation
Finish: Grey
IP Rating: IP55
Coverage: 60°x 60°

Product Specifications

Transducers: LF - 1 x 12" ferrite driver, 2.5” voice coil; HF - 1 x 1.4" exit, 3” voice coil, titanium diaphragm, ferrite compression driver
Operating Range: 37 Hz – 19 kHz
Sensitivity (1W/1m): 94 dB
Power Handling: 600W continuous @ 8 ohms (Passive)
Continuous Max Output: 122 dB (128 dB Peak)
Nominal Beamwidth (H x V): /26 (120° x 60°), /64 (60° x 40°), /66 (60° x 60°), /94 (90° x 40°), /96 (90° x 60°), /99 (90° x 90°)
Enclosure: 15mm PolyGlas™, Grey heavily textured exterior-rated coating with powder-coated marine-grade aluminium grille with water-repellent synthetic fabric backing
Dimensions (H x W x D): 28.0" x 14.5" x 17.7" (711 x 367 x 449 mm)

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
