IP8-1122WR94 12

Price:: RRP: £4,600.80 inc VAT
Code:: COMIP81122WR94
Manufacturer Code:: 911.1087.900
Brand:: Community

Main Features

Lightweight and compact with deep LF extension
Large rotatable waveguide with individually voiced crossover, single amp / biamp selectable
Innovative low profile modular bracket systems create elegant arrays with simplified installation
Finish: Grey
IP Rating: IP55
Coverage: 90°x 40°

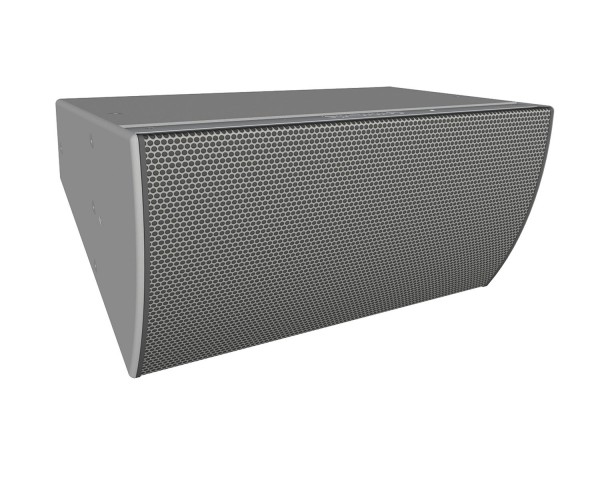

IP8-1122WR94 12" 2-Way Install Loudspeaker 600W IP55 - Grey

I SERIES Point Source 800 weather-resistant loudspeakers provide exemplary acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES includes a wide variety of rotatable coverage patterns and an easily installed U-Bracket that accelerates system design and system commissioning.

FEA-optimised linear suspensions, high-flux neodymium motors, and integral demodulation rings ensure precise control and very low distortion at high SPL levels. The custom long-excursion LF driver delivers deep bass response and a balanced midrange in the most demanding applications. The HF compression driver's non-metallic diaphragm provides natural, transparent sound quality that accurately reproduces and complements any source.

The rotatable 13-inch (330mm) HF waveguide provides well-defined coverage and a smooth off-axis response that enhances arrayability. Individually voiced crossovers produce proper beamwidth matching transitions and identical sonic signatures, permitting horn patterns to be mixed throughout an installation. Factory-standard passive or optional biamp operating modes further expand performance capabilities. The IP8-1122WR includes weather-resistant hardware and grille, with high-strength PolyGlas™ cabinet.

Product Features

High-flux, linear neodymium motors with demodulation rings for very low distortion
Exceptional sound quality and clarity at very high output levels
Lightweight and compact with deep LF extension
Large rotatable waveguide with individually voiced crossover, single amp / biamp selectable
Innovative low profile modular bracket systems create elegant arrays with simplified installation
Finish: Grey
IP Rating: IP55
Coverage: 90°x 40°

Product Specifications

Transducers: LF - 1 x 12" neodymium driver, 3” voice coil, demodulation ring; HF - 1 x 1.4" exit, 2.6” voice coil, demodulation ring, ketone polymer diaphragm, neodymium compression driver
Operating Range: 43 Hz – 22.4 kHz
Sensitivity (1W/1m): 94 dB
Power Handling: 800W continuous @ 8 ohms (Passive)
Continuous Max Output (with processing): 123 dB (129 dB Peak)
Nominal Beamwidth (H x V): /26 (120° x 60°), /64 (60° x 40°), /66 (60° x 60°), /94 (90° x 40°), /96 (90° x 60°), /99 (90° x 90°)
Enclosure: 15mm PolyGlas™, Grey heavily textured exterior-rated coating with powder-coated marine-grade aluminium grille with water-repellent synthetic fabric backing
Dimensions (H x W x D): 28.0" x 14.5" x 17.7" (711 x 367 x 449 mm)

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
