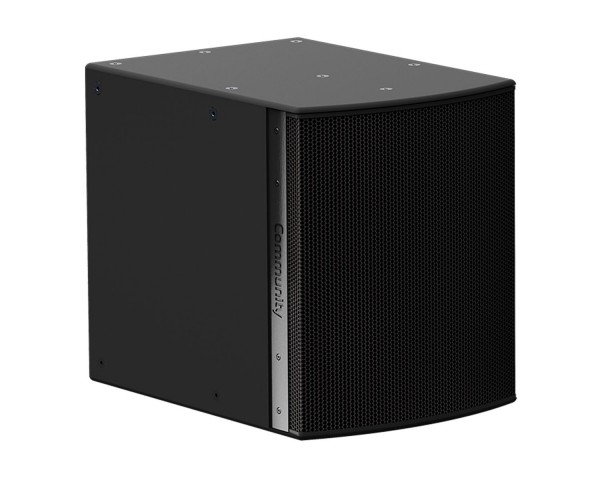

IS8-115B 15" Installation Subwoofer 1000W Black

« return to previous page
Community IS8-115B 15 Installation Subwoofer 1000W Black - Main Image
Community IS8-115B 15 Installation Subwoofer 1000W Black - Image 1
Community IS8-115B 15 Installation Subwoofer 1000W Black - Image 2
Price:
RRP: £2,973.60 inc VAT
Code:
COMIS8115B
Manufacturer Code:
911.1147.900
Brand:
Community

Quantity required:

Main Features

  • Matched-size enclosure and aligned suspension point for seamless flown array integration
  • 1000W continuous power handling (4000W peak)
  • Long, linear excursion ensures deep, clean bass extension at maximum output
  • Isolated driver air volumes allow use of directional steering techniques within a single enclosure
  • Finish: Black
  • Also available in a weather-resistant PolyGlas™ enclosure.
Share:

IS8-115B 15" Installation Subwoofer 1000W - Black

I SERIES Subwoofer 800 loudspeakers provide exemplary acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES Subwoofers provide a broad range of sizes and capabilities that can be specifically matched to the needs of any modern venue.

The compact, low-profile single driver I SERIES subwoofers are ideal for distributed or concealed sub-bass and are the perfect choice for ground stack applications. Additionally, each cabinet was carefully designed to provide matching face widths and suspension point locations for seamless integration into flown arrays with I SERIES full range models when additional LF extension is needed but a compact appearance is required. The broad range of optional low profile fly rails, fly frames and modular array brackets reduce design and installation time while also providing improved aesthetics and nearly limitless integration possibilities.

The IS8-115 is a compact, direct radiating subwoofer with large, balanced ports that provide optimal enclosure tuning and even air pressure distribution to the driver cones, reducing distortion and extending system longevity. FEA optimised linear suspensions and high flux neodymium motors with long linear excursion capabilities provide exceptionally deep bass for the enclosure’s diminutive size.

Product Features

  • High-flux, linear neodymium motors with demodulation rings for very low distortion
  • Matched-size enclosure and aligned suspension point for seamless flown array integration
  • 1000W continuous power handling (4000W peak)
  • Long, linear excursion ensures deep, clean bass extension at maximum output
  • Isolated driver air volumes allow use of directional steering techniques within a single enclosure
  • Finish: Black
  • Also available in a weather-resistant PolyGlas™ enclosure. (See IS8-115WR)

Product Specifications

  • Transducer: 1 x 15" double-treated cone with 4” voice coil, demodulation ring, neodymium construction
  • Operating Range: 36 Hz – 155 Hz
  • Sensitivity (1W/1m): 99 dB
  • Power Handling: 1000W continuous @ 8 ohms
  • Continuous Max Output: 129 dB (135 dB Peak)
  • Nominal Beamwidth (H x V): 360° x 180°
  • Finish: Black or White low gloss, uniformly textured painted 15mm Baltic Birch plywood with powder-coated steel grille
  • Dimensions (H x W x D): 19.80" x 16.50" x 23.35" (503 x 419 x 593 mm)

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
