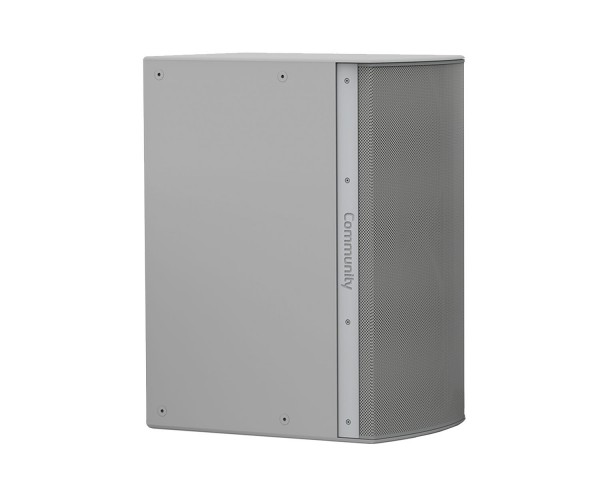

IS8-212W 2x12" Installation Subwoofer 1000W White

« return to previous page
Community IS8-212W 2x12 Installation Subwoofer 1000W White - Main Image
Community IS8-212W 2x12 Installation Subwoofer 1000W White - Image 1
Community IS8-212W 2x12 Installation Subwoofer 1000W White - Image 2
Price:
RRP: £4,072.80 inc VAT
Code:
COMIS8212W
Manufacturer Code:
911.1157.900
Brand:
Community

Quantity required:

Main Features

  • Matched-size enclosure and aligned suspension point for seamless flown array integration
  • 2000W continuous power handling (8000W peak)
  • Long, linear excursion ensures deep, clean bass extension at maximum output
  • Isolated driver air volumes allow use of directional steering techniques within a single enclosure
  • Finish: White
  • Also available in a weather-resistant PolyGlas™ enclosure.
Share:

IS8-212W 2x12" Installation Subwoofer 1000W - White

I SERIES Subwoofer 800 loudspeakers provide exemplary acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I SERIES Subwoofers provide a broad range of sizes and capabilities that can be specifically matched to the needs of any modern venue.

Each cabinet was carefully designed to provide matching heights, face widths and suspension point locations for seamless integration into flown arrays with I SERIES full range models. The broad range of optional low profile fly rails, fly frames and modular array brackets reduce design and installation time while also providing improved aesthetics and nearly limitless integration possibilities.

The IS8-212 is a compact, direct radiating subwoofer with large, balanced ports that provide optimal enclosure tuning and even air pressure distribution to the driver cones, reducing distortion and extending system longevity. Drivers are loaded into individual air volumes within the enclosure, isolating their performance from one another. This arrangement not only provides additional protection to drivers in case of failures, but also allows the designer to implement directional subwoofer techniques, like steered end-fire arrays and cardioid patterns, within a single enclosure when using any I SERIES dual driver subwoofer model.

Product Features

  • High-flux, linear neodymium motors with demodulation rings for very low distortion
  • Matched-size enclosure and aligned suspension point for seamless flown array integration
  • 2000W continuous power handling (8000W peak)
  • Long, linear excursion ensures deep, clean bass extension at maximum output
  • Isolated driver air volumes allow use of directional steering techniques within a single enclosure
  • Finish: White
  • Also available in a weather-resistant PolyGlas™ enclosure. (See IS8-212WR)

Product Specifications

  • Transducers: 2 x 12” double-treated cones with 4” voice coil, demodulation ring, neodymium construction
  • Operating Range: 38 Hz – 140 Hz
  • Sensitivity (1W/1m): 98 dB
  • Power Handling: 2000W continuous @ 4 ohms
  • Continuous Max Output: 131 dB (137 dB Peak)
  • Nominal Beamwidth (H x V): 360° x 180°
  • Finish: Black or White low gloss, uniformly textured painted 15mm Baltic Birch plywood with powder-coated steel grille
  • Dimensions (H x W x D): 28.00" x 14.5" x 21.0" (711 x 368 x 533 mm)

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
