IV6-118SB 18" Vertical-Array Subwoofer 800W Black

« return to previous page

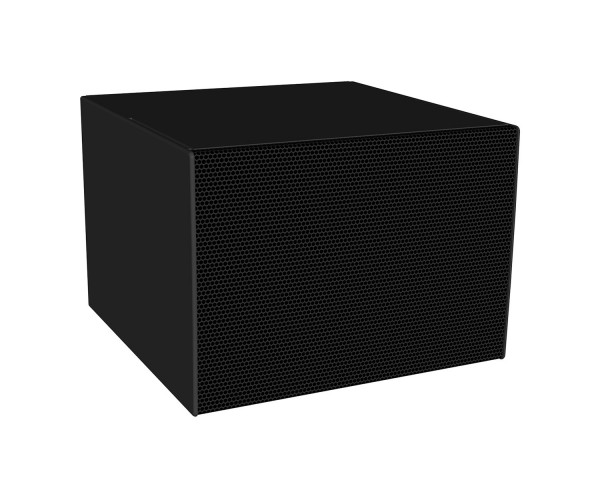

Community IV6-118SB 18 Vertical-Array Subwoofer 800W Black - Main Image
Community IV6-118SB 18 Vertical-Array Subwoofer 800W Black - Image 1
Community IV6-118SB 18 Vertical-Array Subwoofer 800W Black - Image 2
Community IV6-118SB 18 Vertical-Array Subwoofer 800W Black - Image 3
Price:
RRP: £3,633.60 inc VAT
Code:
COMIV6118SB
Manufacturer Code:
911.1198.900
Brand:
Community

Quantity required:

Main Features

  • Long excursion ferrite LF driver with FEA-optimised motor and symmetric movement suspension
  • Matched-size enclosure and aligned suspension point for seamless flown array integration
  • 800W continuous power handling (3200W peak)
  • High sensitivity design minimises power compression losses and required amplifier size
  • Indoor and Outdoor (weather-resistant) models available
  • Finish: Black
Share:

IV6-118SB 18" Vertical-Array Subwoofer 800W - Black

The IV6-118S is a high power 1 x 18" compact, direct-radiating subwoofer designed to complement the full range IV6-1122 elements in any array configuration with deep, impactful low frequency support. Large, balanced ports provide optimal enclosure tuning and even air pressure distribution to the driver cone, reducing distortion and extending system longevity. A FEA-optimised ferrite motor with long linear excursion capabilities provides deep bass response for the enclosure’s size. With 800W @ 8 Ohms of continuous power handling (80V), the IV6-118S subwoofer can be conveniently driven by the same size power amplifier as the IV6-1122 full-range array elements.

Product Features

  • Long excursion ferrite LF driver with FEA-optimised motor and symmetric movement suspension
  • Matched-size enclosure and aligned suspension point for seamless flown array integration
  • 800W continuous power handling (3200W peak)
  • High sensitivity design minimises power compression losses and required amplifier size
  • Indoor and Outdoor (weather-resistant) models available
  • Finish: Black

Product Specifications

  • Transducer: 1 x 18" (457mm) double-treated cone with 4" (102mm) inner/outer wound voice coil, ferrite construction
  • Operating Range: 37 Hz to 132 Hz
  • Continuous Power Handling @ Nominal Impedance: 80V, 800W @ 8 ohms
  • Sensitivity (1W/1m): 102 dB
  • Finish: Black low gloss, uniformly textured painted 15mm Baltic Birch plywood with powder-coated steel grille
  • Dimensions: 20.00" x 28.12" x 28.08" (508 x 714 x 713 mm)

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
