KL PAR FC WH Full-Colour RGBMA LED PAR 280W White

« return to previous page

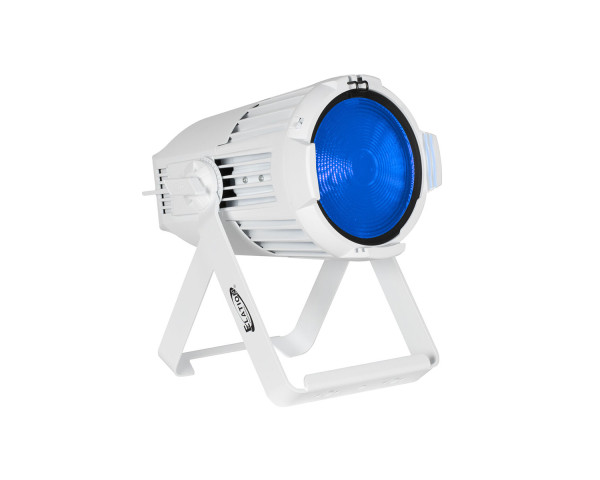

Elation KL PAR FC WH Full-Colour RGBMA LED PAR 280W White - Main Image

Elation KL PAR FC WH Full-Colour RGBMA LED PAR 280W White - Image 1

Elation KL PAR FC WH Full-Colour RGBMA LED PAR 280W White - Image 2

Elation KL PAR FC WH Full-Colour RGBMA LED PAR 280W White - Image 3

Elation KL PAR FC WH Full-Colour RGBMA LED PAR 280W White - Image 4

Elation KL PAR FC WH Full-Colour RGBMA LED PAR 280W White - Image 5

Price:: RRP: £1,158.00 inc VAT
Code:: ELA0161
Manufacturer Code:: 1236100158
Brand:: Elation

Main Features

280W RGBMA LED Engine
ColourTune Technology Software Integration
11000 Total Fixture Lumen Output
Field replaceable lenses
Stand-Alone control with one Encoder and OLED Display
Smooth 16-bit Selectable Dimming Modes and Curves

The KL PAR FC™ is a compact full-colour-spectrum LED fixture that provides high output, precise colour temperature control, full-spectrum colour rendering, and even wash coverage. Offering powerful colour intensity and a wide array of saturated and pastel colours from its efficient RGBMA engine, it is also optimised for the tunable white light requirements of Film and Television.

The KL PAR FC is an ideal key, fill, and area wash light source for theatre, House of Worship, and any production requiring outstanding performance and colour quality. It incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 11,000 field lumens, equivalent to existing 750W Tungsten PAR fixtures, and is delivered with multiple lens choices that are easy to replace in the field. With the new ColourTune Technology software the fixture offers outstanding colour rendering with a high CRI of 93 and TLCI of 95, fully variable 16-bit CCT control, and remotely adjustable LED refresh frequency makes this unit the perfect choice for today's fast-paced production environments. Rugged and portable, the fixture can be suspended using any standard clamp or floor mounted using the integrated stand. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units.

The KL PAR FC can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access and standalone operation using the included encoder and display, providing instant control of Intensity, Colour Temperature, Green shift, and other important settings. The display and encoder are conveniently positioned at the backside of the fixture to ensure unobstructed access when mounted.

Product Features

280W RGBMA LED Engine
ColourTune Technology Software Integration
11000 Total Fixture Lumen Output
Field replaceable lenses
Stand-Alone control with one Encoder and OLED Display
Smooth 16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate and Fan Speed Adjustment
Flicker Free Operation for TV and FILM
RDM (Remote Device Management)
7.5" Gel Frame and four lenses (11°, 22°, 30°, 52°) included

Product Specifications

Source

280W 6,500K RGBMA LED Engine
50,000 Hour Average LED Life

Photometric Data

11,000 Total Lumen Output
CRI 92
TLCI 95

Included Lenses

VNSP (11°)
NSP (22°)
MFL (30°)
WFL (52°)

Effects

Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

Colour

ColourTune Technology
High Brightness and High Fidelity Output Options
RGBMA Colour Array
CMY Emulation
16-bit Fully Variable CCT 2,400K – 8,500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book

Control / Connections

8 DMX Channel Modes (1, 6, 11, 18, 19, 9, 14, 15)
Manual and DMX Controlled Dimmer and Colour
Single Rotary Dial
4 Button Control Panel, LED Display
RDM (Remote Device Management)
3/5pin DMX and IP65 Locking Power Cable In/Out

Electrical / Thermal

AC 100-240V – 50/60Hz
284W Max Power Consumption
Power Thru Capacity: 8A (3 units @110V, 6 units @240V)
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%): 891.76
