KSM11B/C Cardioid Condenser Handheld Microphone

« return to previous page

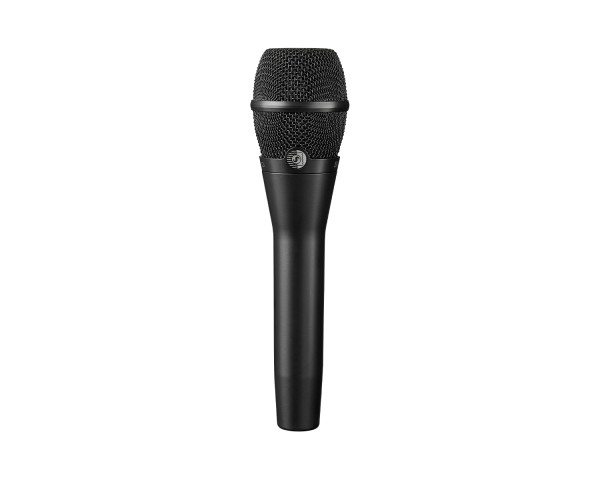

Shure KSM11B/C Cardioid Condenser Handheld Microphone - Main Image
Shure KSM11B/C Cardioid Condenser Handheld Microphone - Image 1
Shure KSM11B/C Cardioid Condenser Handheld Microphone - Image 2
Shure KSM11B/C Cardioid Condenser Handheld Microphone - Image 3
Shure KSM11B/C Cardioid Condenser Handheld Microphone - Image 4
Price:
RRP: £744.00 inc VAT
Code:
SHUKSM11BC
Manufacturer Code:
KSM11B/C
Brand:
Shure

Quantity required:

Main Features

  • Proprietary condenser capsule utilizing a ¾” gold diaphragm and premium electronics
  • Streamlined design for an overall smaller and lighter capsule footprint
  • Advanced suspended isolation system for virtually zero handling noise
  • Dent-resistant hardened steel grille with 3-stage plosive reduction pop filtering
  • Provides a prized combination of full lows, clear mids and high-end detail
  • Highly consistent, deep cardioid polar pattern
Share:

KSM11B/C Cardioid Condenser Handheld Microphone

The KSM11 Wireless Vocal Microphone Capsule redefines vocal performance by providing a prized combination of full lows, clear mids and high-end detail, without requiring extensive EQ. A cardioid condenser designed specifically for live performance, event recording, and premium streaming, the KSM11 allows digital wireless systems to present live vocals that must be heard and believed.

As modern live stages have transitioned to digital technology, the KSM11 cardioid condenser microphone was developed to take advantage of increased digital audio linearity – equal output across the frequency range. The KSM11 delivers an elegant balance of full low end, rich mid-range, essential high-end detail, and incredible off-axis rejection. Professional engineers have a near-perfect presentation of vocal performance to build their mixes around, EQing by choice and not default. You’ve never heard vocals sound this good.

Product Features

  • Proprietary condenser capsule utilizing a ¾” gold diaphragm and premium electronics for exceptional dynamic range and transient response
  • Highly consistent, deep cardioid polar pattern reduces off-axis phase distortion for pristinely focused vocal reproduction to provide rich and full low frequency response, linear and transparent mid-range and natural high-end detail
  • Streamlined design for an overall smaller and lighter capsule footprint
  • Advanced suspended isolation system for virtually zero handling noise
  • Dent-resistant hardened steel grille with 3-stage plosive reduction pop filtering for consistent, artifact-free vocals
  • Available separately as black and nickel wireless capsules (RPW192 and RPW194), and with ULX-D transmitters in black and Axient Digital transmitters in black and nickel. RPW192 and RPW194 are compatible with all Shure handheld  transmitters with interchangeable microphone capsules.

Product Speicfications

  • Type:  Electret condenser
  • KSM11 Polar Pattern:  Cardioid
  • KSM11 Frequency Response:  80 to 20,000 Hz
  • Output Impedance (1 kHz):  150 Ω
  • Sensitivity:
    • 1k load -49 dBV/Pa (3.5 mV)
    • 5k load -48 dBV/Pa (3.9 mV)
    • 1 Pa=94 dB SPL
  • Maximum SPL:  149 dBSPL
  • Signal-to-Noise Ratio:  75 dB S/N ratio is the difference between 94 dB SPL and equivalent SPL of self noise, A-weighted
  • Dynamic Range:
    • 1k load 130 dB
    • 5k load 131 dB
  • Clipping Level:
    • 1k load 6.2 dBV
    • 5k load 7.7 dBV
  • Self Noise:  19 dBSPL typical, equivalent SPL, A-weighted
  • Common Mode Rejection:  >55 dB
  • Connector:  Three-pin professional audio (XLR), male, balanced
  • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
  • Power Requirements:  11 to 52 V DC phantom power (IEC-61938) 5.2 mA, maximum
  • Weight:  239 g (8.43 oz.)
