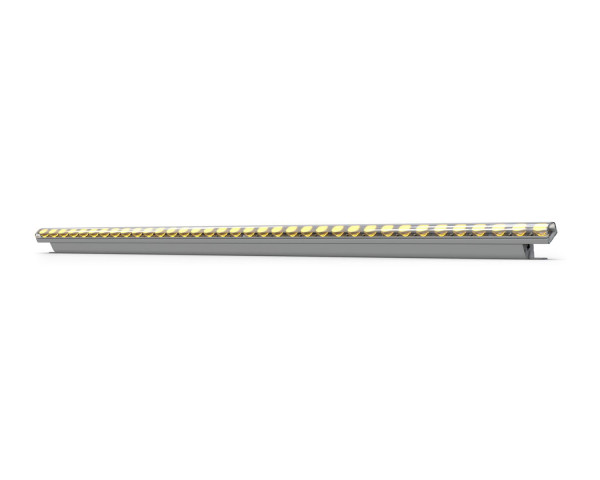

Iluminarc Logic Graze L 1.2m LED Batten 36x RGBW LED 2.5W 3014 Lumen Output - Main Image

Iluminarc Logic Graze L 1.2m LED Batten 36x RGBW LED 2.5W 3014 Lumen Output - Image 1

Iluminarc Logic Graze L 1.2m LED Batten 36x RGBW LED 2.5W 3014 Lumen Output - Image 2

Iluminarc Logic Graze L 1.2m LED Batten 36x RGBW LED 2.5W 3014 Lumen Output - Image 3

Iluminarc Logic Graze L 1.2m LED Batten 36x RGBW LED 2.5W 3014 Lumen Output - Image 4

Iluminarc Logic Graze L 1.2m LED Batten 36x RGBW LED 2.5W 3014 Lumen Output - Image 5

Iluminarc Logic Graze L 1.2m LED Batten 36x RGBW LED 2.5W 3014 Lumen Output - Image 6

Iluminarc Logic Graze L 1.2m LED Batten 36x RGBW LED 2.5W 3014 Lumen Output - Image 7

Price:: POA
Code:: ILULGRAZEL
Manufacturer Code:: LOGICGZL
Brand:: Iluminarc

Main Features

Light Source: 36 Quad-color RGBW LEDs at 2.5W
LED Lifespan: 50,000 hours
Native Beam Angle: 124.8º
Lumen Output: 3,014
Color Temperature Presets: 1,800K to 10,000K
Control: Logic Drive 2X (required)

Iluminarc Logic Graze, part of the Logic Lighting System, is a compact and streamlined wall wash batten for permanent installation. With up to a twenty-foot throw distance, this RGBW fixture is perfect for fitting into tight spaces. Able to wash large sections of walls in bright yet even washes of beautiful color, its four-color system can produce the deepest saturates to the subtlest shades of white. Graze uses Power Over Ethernet (POE) to keep cable runs to multiple fixtures clean and tidy, with all fixtures supporting simple daisy-chaining with widely-available Ethernet cable.

Product Features

Light Source: 36 Quad-color RGBW LEDs at 2.5W
LED Lifespan: 50,000 hours
Native Beam Angle: 124.8º
Lumen Output: 3,014
Color Temperature Presets: 1,800K to 10,000K
Control: Logic Drive 2X (required)
Lens Material: Clear Polycarbonate

Product Specifications

Light Source and Optical Specifications

Light Source: 36 LEDs (quad-color RGBW) 2.5 W, (870 mA)
Light Source Lifespan: 50,000 hours based on LED manufacturer’s specifications
White LED Native CCT: 3000 K
Installed Optics: Medium
Included Optics: Very Wide Filter
Open Optics
- Beam Angle (Horizontal): 124.8°
- Beam Angle (Vertical): 124.7°
- Field Angle (Horizontal): 147.7°
- Field Angle (Vertical): 169.2°
- Cutoff angle: 266.2°
- Lumens: 3,014
- Base Illuminance @ 5 m: 36 lux
- Efficacy: 81 lm / W
Medium Optics (installed)
- Beam Angle (Horizontal): 41.5°
- Beam Angle (Vertical): 32.5°
- Field Angle (Horizontal): 83.6°
- Field Angle (Vertical): 65°
- Cutoff angle: 132.7°
- Lumens: 2,421
- Base Illuminance @ 5 m: 146 lux
- Efficacy: 65 lm / W
Very Wide filter (included)
- Beam Angle (Horizontal): 47.2°
- Beam Angle (Vertical): 51.1°
- Field Angle (Horizontal): 169.5°
- Field Angle (Vertical): 151.8°
- Cutoff angle: 281.6°
- Lumens: 1,911
- Base Illuminance @ 5 m: 41 lux
- Efficacy: 51 lm / W
Color Temperature Presets: Built-in, 1,800 to 10,000 K

Construction & Physical Specifications

Dimensions: 47.99 x 1.37 x 2.36 in (1,219 x 35 x 60 mm)
Weight: 4.19 lb (1.9 kg)
Fixture Color: White
Housing Material: Aluminum (ADC12)
Lens Cover: Clear Polycarbonate
Mounting Options: Integrated mounting bracket, 0.827 x 240 in (21 x 6.10 mm) bracket holes

Control Specifications

Control Protocol: USITT DMX-512a, RDM, Art-Net, Art-RDM, sACN via Logic Drive 2X
Operating Modes: Selectable personalities, via Logic Drive 2X
- Red (1-channel): Red
- Green (1-channel): Green
- Blue (1-channel): Blue
- White (1-channel): White
- TW (2-channel): Dimmer, White CCT Preset
- RGB (3-channel): Red, Green, Blue
- RGBW (4-channel): Red, Green, Blue, White
- RGBW+D (5-channel): Red, Green, Blue, White, Dimmer
- FULL (10-channel): Dimmer, Red, Green, Blue, White, White CCT presets, Strobe, Auto Programs, Dimmer speed presets
Standalone Control: Yes, Logic Wall Con via Logic Drive 2X
Fixture setup: Logic Drive 2X (RDM, Webserver or Display), Art-RDM (DMX Workshop)

Electrical System Specifications

Input Voltage: 52-56 VDC
Power and Current (fixture via POE): 37.5 W
Power Supply: POE++, IEEE 802.3bt, type 4, class 8 (via Logic Drive 2X)
Dimmer: Electronic
Power Linking: 2 units per port via POE++, IEEE 802.3bt, type 4
Power/Data Connection: 2 Ethernet (RJ45)
Required Cable Specifications
- Cable type: CAT6/A, Shielded
- Conductor Diameter: ≥23 AWG (≥0.5733 mm)
- Conductor Material: Solid bare copper wire (stranded not supported)
- Cable Terminator: RJ45, CAT6/A, shielded
Cable Length(s) Supported:
- Total Max Cable Length (Drive to first fixture)≤100 m / 328 ft
- Total Max Cable Length (Drive to last fixture): ≤140 m / 460 ft
- Total Max Cable Length (first fixture to last fixture): ≤40 m / 131 ft
Recommended Cable (or equivalent): Belden 2413F, 2412F

Thermal Specifications

Cooling: Convection
Operating Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)
Maximum Surface Temperature: 158 °F (70 °C)
Minimum Distance to Flammable Surface: 11.8 in (0.3 m)
BTU/hr: 128

Regulatory & Voluntary Qualification

UL 2108, UL 1598A
Canadian Safety: CSA-C22.2 No. 250.2
Certification Listings: CE, MET, FCC, ROHS
Environment: Dry location, IP20, All indoor permanent installations.
- Please refer to the User Manual for more detailed information on installation.
Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
Installation Orientation: Any
