Main Features
100% isolation to eliminate ground loops
Jensen transformer-equipped for highest audio quality

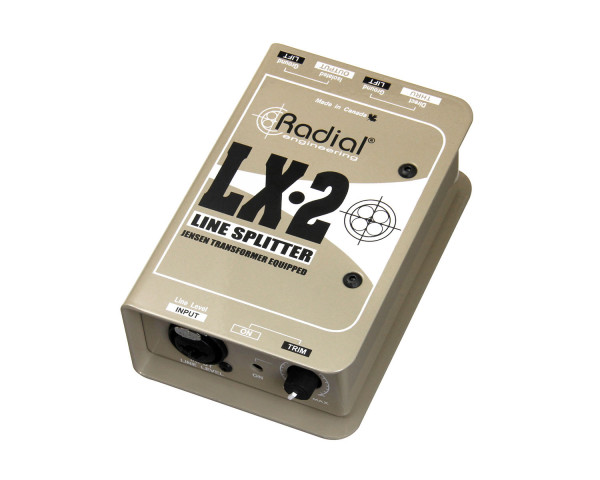

LX-2 Passive Balanced Line-Level Splitter and Attenuator
The LX-2 performs the dual functions of splitting a line level audio signal and providing level attenuation where necessary. A premium Jensen transformer inside provides exceptional frequency response and phase coherency to ensure that the highest audio quality is maintained, while isolating the two outputs from each other to eliminate hum and buzz from ground loops. For situations where a level adjustment is required, the trim control on the LX-2 allows you to attenuate overly hot signals. This gives you the ability to drive your mic preamps hard to achieve coloration, while trimming the level at the LX-2 to avoid clipping the inputs of your recording interface. This trim control is activated by a recessed ‘set & forget’ switch; if attenuation is not needed, simply disengage this switch to prevent accidental and unwanted level adjustments.
Product Features
100% isolation to eliminate ground loops
Jensen transformer-equipped for highest audio quality
Variable Trim control can be engaged when needed
Extremely high signal handling without distortion
Applications
Line level split to a mixing console and a recording Interface
Isolate two line level devices to eliminate buzz and hum
Trim hot mic preamp outputs to prevent clipping
Cool Stuff
Completely passive, no power required
Plug & play, easy to use anywhere
3-year transferable warranty
Up to 8 may be rack-mounted with the J-Rak
Product Specifications
Audio circuit type: Passive, transformer based
Transformer: Jensen JT-11-FLPCH
Number of channels: 1 input, 1 iso output, 1 direct output
Frequency response: 20Hz - 20kHz +/-0.5dB
Dynamic range: 140dB
Gain: -1.5dBu
Total harmonic distortion: <0.001% @ 1kHz
Phase Deviation: +0.3° @ 20Hz
Input Impedance: 716Ω
Output Impedance: 116Ω
Common Mode Rejection Ratio: 94dB @ 60Hz, 83dB @3kHz
Noise: -119dBu
Maximum Input: +21dBu
Features
Ground lift, Level Control
Input Connectors: Combo XLR / 1/4"
Output Connectors: isolated XLR, direct XLR
General
Construction: 14-gauge steel
Size (L x W x D): 84mm x 127mm x 48mm (3.3" x 5" x 2")
Weight: 0.7kg (1.5lbs)
Shipping size (L x W x D): 102mm x 76mm x 165mm (4" x 3" x 6.5")
Shipping weight: 0.87 kg (1.92 lbs)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
