M55/O Micro Hanging Ceiling Microphone Omnidirectional

« return to previous page

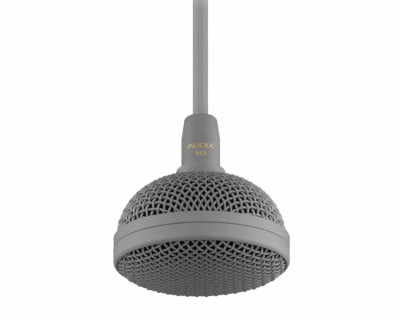

Audix M55/O Micro Hanging Ceiling Microphone Omnidirectional - Main Image
Price:
RRP: £425.00 inc VAT
Code:
ADXM55O
Manufacturer Code:
AX-M55/O
Brand:
Audix

Quantity required:

Main Features

  • High output allows distance miking
  • Optimised for voice recognition
  • Immunity from RF interference
  • Fingertip height adjustment and rotation control
  • Low noise preamp circuitry
  • Designed, assembled & tested in the USA
Share:

M55/O Micro Hanging Ceiling Microphone Omnidirectional

The M55 hanging ceiling microphone system is designed for applications where aesthetics, sound quality, and ease of installation are critical. The primary applications for the ceiling-mounted M55 include Video & Teleconference (VTC), distance learning, hospital rooms, surveillance, and ambient room miking.

The M55 conferencing microphone accommodates interchangeable capsules with cardioid, hypercardioid, omnidirectional, and supercardioid (shotgun) coverage patterns. All electronics are fully integrated with high sensitivity and low noise. The signal output is balanced to eliminate RF interference caused by cell phones and mobile devices.

Installing the M55 hanging microphone requires drilling just one 5/8-inch hole in the ceiling, with no additional tools needed. The M55’s mounting hardware easily adjusts the hanging height up to four feet from the ceiling surface without removing ceiling tiles. An optional aiming clip (MCHANGER) easily makes any additional angular adjustments. The cable assembly, with a terminal block connector, is neatly housed in an airtight, plenum-rated junction box. A wire safety cable provides additional seismic restraint.

Product Features

  • High output allows distance miking
  • Optimised for voice recognition
  • Immunity from RF interference
  • Fingertip height adjustment and rotation control
  • Low noise preamp circuitry
  • Designed, assembled & tested in the USA
  • 3 year warranty

Applications

  • Video Teleconferencing (VTC)
  • Distance Learning
  • Board Rooms
  • Surveillance
  • Hospital and medical procedures
  • Ambient room miking

Product Specifications

  • Transducer Type:  Condenser
  • Frequency Response:  60 Hz – 10 kHz
  • Polar Pattern:  Omni
  • Output Impedance:  150 ohms
  • Sensitivity:  40mV (O) Pa @ 1k
  • Equivalent Noise Level:  22 dB (A-weighted)
  • Signal to Noise Ratio:  72 dB
  • Maximum SPL:  ≥130 dB
  • Dynamic Range:  108 dB
  • Power Requirements:  18 – 52 V phantom
  • Connector:  Terminal Block Connector
  • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
  • Materials / Finish:  Aluminium & Zinc Alloy / White Finish
  • Weight:  70 g / 2.4 oz (Mic & Cable) 499 g / 17.6 oz (Junction Box & Safety Cable)
  • Length:  54 mm / 2.1 in

What's in the Box?

  • 1x M55 Ceiling Microphone
  • 1x CONN170F Terminal Block Connector, 4-ft Integrated Microphone Cable
  • 1x CONN170M Mating Terminal Connector
  • 1x JBM55 Metal Plenum Junction Box
