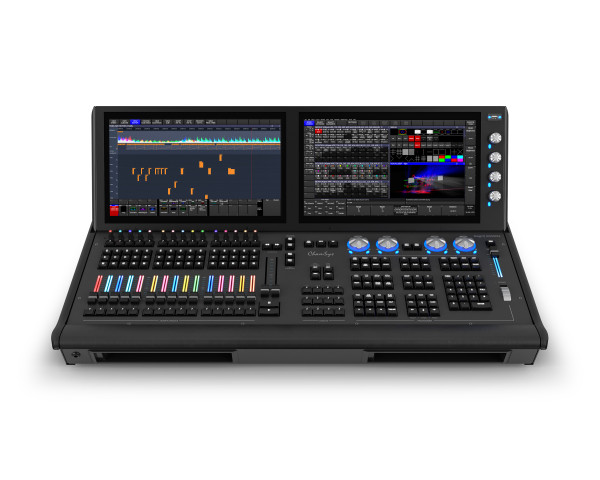

At home on the largest of shows, MagicQ MQ500M+ Stadium supports 400 universes direct from the console without the need for external processing. MQ500M+ introduces the ability to expand screen real estate via its two Display Port++ External Monitor ports, and adds inbuilt Wi-Fi for connection of Remote Focus application and an inbuilt 4-port Gigabit Network Switch.
MQ500M+ features RGB-illuminated faders and encoder playbacks, with 15 fully-motorised fader playbacks, 15 encoder playbacks and 12 backlit multi-purpose Macro/Execute/Playbacks/Palette keys, giving the console a total of 42 playbacks and providing programmers with a powerful work station well-suited for Concert & Touring, TV & Broadcast, Live Events, House of Worship and Theatre applications.
MQ500M+ also features dual HD resolution multi-touch 15” displays with adjustable viewing angles and multi-touch gesture support, for a more intuitive workflow. For additional control, connect a MagicQ MQ500M Stadium Wing and get even more playbacks and another touchscreen display as well.
MQ500M+ Stadium has inbuilt MagicVis 3D visualiser with high quality beam and gobo rendering, enabling you to pre-program shows offline and save time onsite. This versatile console comes with 4 DMX ports, an intensity wheel and 100-mm split crossfaders for theatre control.
Product Features
400 universes direct from the console
15 fully motorised fader playbacks
15 encoder playback with RGB indicators
12 multi-purpose Macro/Executes/Playbacks keys
RGB illumination of playbacks
Backlit buttons
Dual Inbuilt 15" Multi HD touch displays
Two Display Port++ External Monitor Support
Inbuilt Wi-Fi for connection of Remote Focus application
Inbuilt 4-port Gigabit Network Switch
4 DMX ports
Audio In/Out on the Rear Panel
Power Out for MQ500M Stadium Wing
Up to 8 touch displays support (4 via remote network)
Dual motorised 100mm crossfaders ideal for Theatre
Inbuilt MagicVis Visualiser with full rendering of beams and gobos
Product Specifications
Hardware Specifications
Universes direct from the console (via Artnet/sACN/Pathport): 400
Direct DMX Outputs: 4
Motorised Playbacks: 15
Encoder Playbacks: 15
Macro/Execute/Playback Section keys: 12
Total no of Playbacks: 42 (15+15+12)
Dual Motorised Cross Faders: Yes
Attribute Encoders: 8
Backlit Keys: Yes
Illuminated Playback/Encoders with RGB control: Yes
Intensity Wheel: 1
Network Ports: 4 (Gigabit)
In-built Wi-Fi: Yes
Inbuilt 15" HD Multi-Touch Displays: 2
External Monitors DP++ Port: 2
USB Ports, including 2 High Power USBs: 6
Audio Input (1 channel, 7 band): Yes
Audio Input: Yes
Audio Output: Yes
MIDI Ports 1 in and out: Yes
LTC Timecode Ports in and out: Yes
Remote Input: Yes
Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
Front Storage Pockets: 2
Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
Power Output, Neutrik powerCON TRUE1
Software Specifications
Max Number of DMX Channels: 204,800
Max Number of Fixtures Supported: 204,800
Max Number of Cues: 5000
Max Number of Cue Stacks: 2000
Max Number of Groups: 5000
Max Number of Palettes: 4096
Number of Media Server Layers Supported: 50 (each different content)
Numbers of Shows: Virtually unlimited (500GB SSD)
Console Weights and Dimensions
Width: 860mm (33.8 inches)
Depth: 585mm (23 inches)
Height: 90mm high at front (3.5 inches), 175mm high at rear (screens stored) (6.9 inches)
