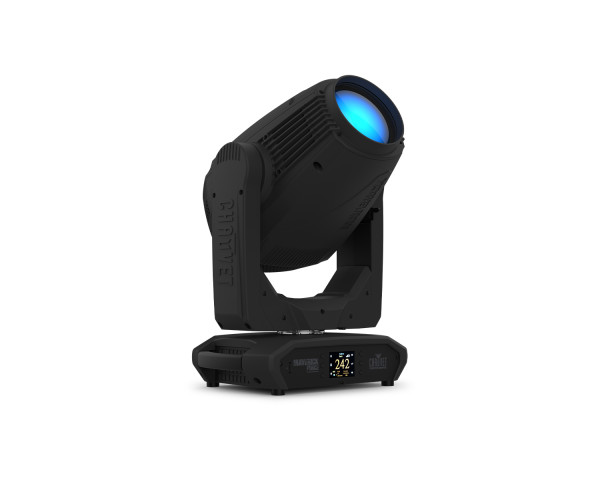

Maverick Force 2 SoloWash LED Engine CMY +CTO Colour Mixing 480W

Product Features

• Fully featured, compact and lightweight 480 W LED yoke single source wash fixture including CMY + CTO colour mixing, a colour wheel, zoom optics, and one rotating gobo wheel
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY + CTO colour mixing system to create a wide pallet of colours
• CRI and CTB filters on the colour wheel for added flexibility
• DMX, WDMX, sACN, and Art-Net for full flexibility of control options
• RDM enabled for remote addressing and trouble shooting
• 14.8° to 56.9°zoom range for variable beam sizes
• Linear 5-facet prism, geometric gobos and frost for beam control
• True 1 compatible power input
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
• USB slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation
• Fail Safe Ethernet connectivity allows for data to pass even if fixture power is lost

Product Specifications

Optical

• Light Source:  1 LED (CW) 480 W (15 A), 50,000 hours life expectancy
• Colour Temperature (at full):  7308 K
• Colour Temperature (range):  7308 to 3007 K
• CRI:  70.4 (with filter:  87.7)
• Front Lens Diameter:  178 mm
• Beam Angle:  6.3° to 32.8°
• Field Angle:  9.3° to 49.5°
• Cutoff Angle:  11.2° to 55.7°
• Zoom Range:  6.3° to 49.5°
• Lumens – Source:  39,200
• Lumens – Output:  30,967
• Illuminance (6.3°):  91,362 lux @ 5 m
• Illuminance (49.5°):  3989 lux @ 5 m
• Selectable PWM:  600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

Dynamic Effects

• Pan and Tilt:  540°/270°
• Pan and Tilt Ranges:  540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colours:  7 + open, split colours, continuous scroll at variable speeds
• Colours:  CMY flags, CTO flag
• Gobos:  7 + open (7 Metal), rotating, interchangeable, indexing, slot n-lock, continuous scroll at variable speeds
• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Zoom:  Motorized
• Focus:  Motorized
• Frost:  Motorized
• Iris:  Motorized
• Prism:  5 Facets, motorized, rotating
• Strobe Rate:  0 to 20 Hz
• Move-in-Black:  Yes
• Dim Curves:  5

Connections

• Power Connection:  Seetronic Powercon IP65
• Power Input/Output:  Seetronic Powercon IP65
• Data Connectors:  3-pin XLR, 5-pin XLR, Neutrik RJ45 Connectors in/out
• Cable Length (power):  5 ft (1.5 m)
• Software Connection:  Type-C USB

Control

• Control Protocol:  Art-Net, sACN, RDM, DMX, W-DMX
• DMX Channels:  21ch or 27ch
• Art-Net/sACN Channels:  21ch or 27ch
• Modes/Personalities:  2 personalities (21ch or 27ch)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  2 units @ 120 V; 3 units @ 208 V; 3units @ 230 V
• Power and Current:  660 W, 5.57 A @ 120 V, 60 Hz
• Power and Current:  649 W, 3.24 A @ 208 V, 60 Hz
• Power and Current:  641 W, 3.07 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC, UKCA
• IP Rating:  IP20, dry location
• Temperature (Operating):  14 °F to 113 °F (-10 °C to 45 °C)

Construction / Physical

• Dimensions:  16.8 x 10.7 x 25.8 in (426 x 272 x 656 mm)
• Weight:  53.4 lb (24.2 kg)
• Exterior Colour:  Black
• Housing Material:  Aluminium diecast, High-impact flame-retardant polymer, Steel

What's in the Box?

• Maverick Force 2 SoloWash
• Seetronic Powercon IP65 power cord
• (2) 140mm Omega brackets with mounting hardware
