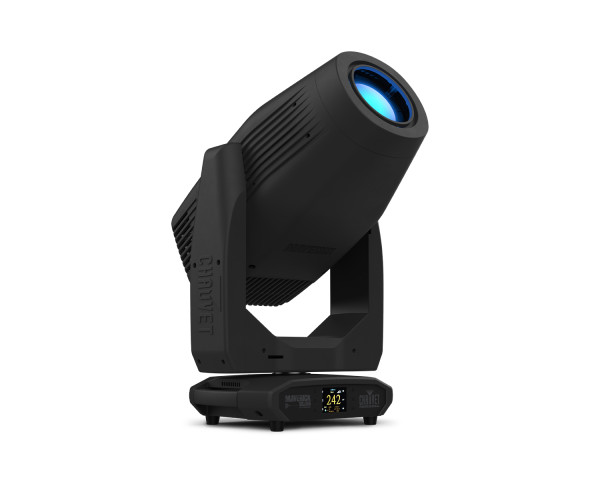

Maverick Silens 2X Profile Extra Quiet LED Engine CMY + CTO 760W

Product Features

• Completely silent, fully featured 760 W 94+ CRI LED yoke profile fixture including CMY+CTO colour mixing, a four-blade framing shutter system with rotation, a colour wheel, animation wheel, a 10:1 zoom, prism, variable frost, as well as static and rotating gobo wheels.
• 100% convection cooled for zero fan noise along with silent motion and effects
• 16-bit dimming with selectable red shift of master dimmer for smooth control of fades
• Variable CMY + CTO colour mixing system to create a wide pallet of colours
• One rotating and one static gobo wheel with unique, theatrical based designs
• Interchangeable gobos between rotating and static wheels
• Variable frost system
• + or – 60 degrees rotation framing shutter system to allow for better framing positioning.
• Animation wheel for enhanced visual effects
• Iris for total beam control
• RDM control over DMX for fixture reporting
• 5.5° to 57.9° zoom angle for variable beam sizes
• True 1 compatible power input and throughput
• Battery backup display with auto-rotate depending on fixture orientation

Product Specifications

Optical

• Light Source:  1 LEDs (CW) 750 W, (12 A), 6331 K, 30,000 hours life expectancy
• Light Source:  1 LED (RGB) 13 W, (3.7 A), 50,000 hours life expectancy
• Colour Temperature (at full):  6317 K
• CRI:  95.6
• TM-30 Rf:  93.2
• TM-30 Rg:  101.5
• Front Lens Diameter:  138mm
• Beam Angle:  5.5° to 49.9°
• Field Angle:  6° to 53.1°
• Zoom Range:  5° to 58°
• Cutoff Angle:  6.2° to 57.9°
• Zoom Range:  5.5° to 57.9°
• Lumens – Source:  XX
• Lumens – Output:  11,227
• Illuminance (5.5°):  30,672 lux @ 5 m
• Illuminance (57.9°):  697 lux @ 5 m
• Selectable PWM:  20,000, 40,000

Dynamic Effects

• Pan and Tilt:  540°/270°
• Pan and Tilt Ranges:  540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colours:  6 + white, split colours, continuous scroll at variable speeds
• Colours:  CMY flags, CTO flag, colour correction
• Gobos (1):  7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2):  8 + open (8 glass), continuous scroll at variable speeds
• Gobo Size:  Gobo Wheel 1 (rotating):  26.9 mm (outside), 22 mm (image)
• Gobo Size:  Gobo Wheel 2:  26.9 mm (outside), 22 mm (image)
• Effect Wheel:  1 effect
• Framing Shutters:  Yes
• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Zoom:  Motorised
• Focus:  Motorised
• Frost:  Variable Frost - Motorised
• Iris:  Motorised – 15 Leaf
• Prism:  5 Facets, round, motorised, rotating
• Strobe Rate:  0 to 20 Hz
• Move-in-Black:  Yes
• Dim Curves:  4

Connections

• Power Connection:  Edison plug to Seetronic Powerkon IP65
• Power Input:  Seetronic Powerkon IP65
• Data Connectors:  5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
• Cable Length (power):  5 ft (1.5 m)

Control

• Control Protocol:  Art-Net, DMX, CRMX, RDM, sACN
• DMX Channels:  32 or 41
• Art-Net Channels:  32 or 41
• Modes/Personalities:  2 personalities (32, 41)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  2 units @ 100 V; 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V; 4 units @ 240 V
• Power and Current:  650 W, 6.53 A @ 100 V, 60 Hz
• Power and Current:  640 W, 5.45 A @ 120 V, 60 Hz
• Power and Current:  639 W, 3.10 A @ 208 V, 60 Hz
• Power and Current:  648 W, 2.82 A @ 230 V, 50 Hz
• Power and Current:  654 W, 2.75 A @ 240 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC
• IP Rating:  IP20, dry location
• Temperature (Ambient):  -4 °F to 113 °F (-20 °C to 45 °C)

Construction / Physical

• Dimensions:  17.0 x 10.8 x 31.1 in (433 x 276 x 792 mm)
• Weight:  75.5 lb. (34.4 kg)
• Exterior Colour:  Black
• Housing Material:  High-impact flame-retardant Polymer

What's in the Box?

• Maverick Silens 2 Profile
• Seetronic Powerkon IP65 power cord
• 2 x Omega brackets with mounting hardware
• Gel Frame Holder and Gel Frame
