ME104-B Mini Cardioid Modular Lavalier Mic Capsule Black

« return to previous page

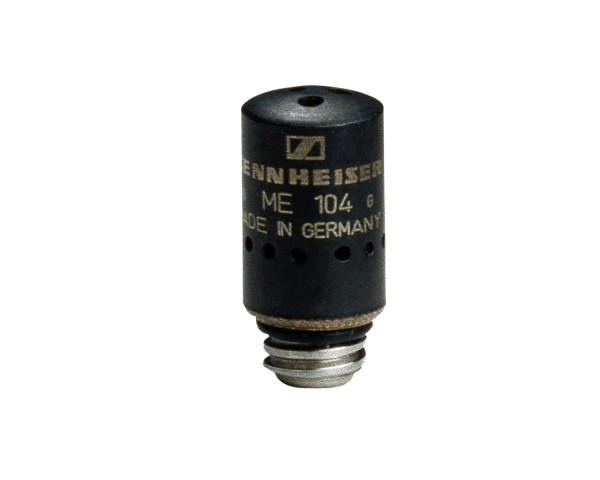

Sennheiser ME104-B Mini Cardioid Modular Lavalier Mic Capsule Black - Main Image
Price:
RRP: £250.80 inc VAT
Code:
SENME104B
Manufacturer Code:
004227
Brand:
Sennheiser

Quantity required:

Main Features

  • Excellent speech clarity
  • Scratch-resistant matt finish
  • Gently falling frequency response curve at low frequencies ensures good rejection of handling and wind noise
  • Minimal inherent self-noise
  • Cardioid microphone capsule
  • Suitable for all areas of live work where a small and unobtrusive microphone is needed for vocal and speech applications
Share:

ME104-B Mini Cardioid Modular Lavalier Mic Capsule - Black

The ME 104 modular mini-microphone system fulfils professional demands for sound quality and rugged handling, and is suitable for all areas of live work where a small and unobtrusive microphone is needed for vocal and speech applications.

Product Features

  • Excellent speech clarity
  • Scratch-resistant matt finish
  • Gently falling frequency response curve at low frequencies ensures good rejection of handling and wind noise
  • Minimal inherent self-noise
  • Omni-directional or cardioid microphone capsules, can be quickly interchanged
  • Suitable for all areas of live work where a small and unobtrusive microphone is needed for vocal and speech applications
  • Optionally available with right-angled plug (copper wire cable, extremely insensitive to handling noise) or with straight plug (steel wire cable, very resistant to tearing)

Product Specifications

General

  • Frequency response (Microphone):  100.....20000 Hz
  • Pick-up pattern:  Cardioid
  • Sensitivity in free field, no load (1kHz):  8 mV/Pa +- 2,5 dB
  • Nominal impedance:  1000 Ω
  • Min. terminating impedance:  4700 Ω
  • Equivalent noise level:  30 dB
  • Equivalent noise level weighted as per CCIR 468-3:  38 dB
  • Maximum sound pressure level (passive):  133dB (K = 1%)
  • Current consumption:  ca. 250 µA

Physical

  • Dimensions:  d 6 x 12 mm
  • Weight:  80 g
