MEB104B Cardioid Install Boundary Layer Mic XLR3 BLACK

« return to previous page

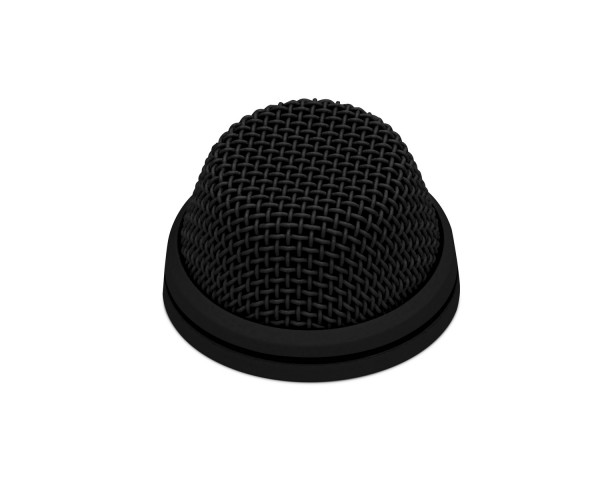

Sennheiser MEB104B Cardioid Install Boundary Layer Mic XLR3 BLACK - Main Image
Price:
RRP: £250.80 inc VAT
Code:
SENMB104B
Manufacturer Code:
505606
Brand:
Sennheiser

Quantity required:

Main Features

  • Safe and strong housing
  • Can be installed in various ways
  • Unobtrusive, timeless design
  • Optimised for speech
  • Discreet look and design
  • Finish: Black
Share:

MEB104B Cardioid Install Boundary Layer Mic - Black

Compact and unobtrusively designed, the cardioid boundary layer microphone MEB 104 (cardioid) fits any style of interior and can be easily installed into surfaces such as tables or ceiling tiles. It features a proven Sennheiser microphone capsule for the best speech intelligibility, and is protected by a rugged housing. Its -L variant features a bi-colour LED ring for status indication.

Product Features

  • Safe and strong housing
  • Can be installed in various ways
  • Unobtrusive, timeless design
  • Optimised for speech
  • Discreet look and design
  • Finish: Black

Product Specifications

General

  • Connector:
    • MEB 104:  XLR-3
    • MEB 104-L:  XLR-5
  • Current consumption:
    • MEB 104:  3 mA
    • MEB 104-L:  6 mA
  • Frequency response:  40 Hz – 20 kHz
  • Max. sound pressure level:  125 dB
  • Transducer principle:  pre-polarized condenser microphone
  • Pick-up pattern:  cardioid
  • Nominal impedance:  200 Ω
  • Phantom powering:  P 24 - P 48
  • Operating temperature:  0 ° - +40 °C
  • Equivalent noise level:  28 dB (A)
  • Equivalent noise level weighted as per CCIR:  468-3 38 dB (CCIR)
  • Acoustics:  Boundary Layer Microphone
  • Dynamic range:  97 dB (A)
  • Sensitivity:  14 mV/Pa
  • Thread:  M 20

Physical & Dimensions

  • Weight:  60 g
  • Dimensions
  • Height:  90 mm (19 mm above surface)
  • Diameter:  28.5 mm
  • Colour:  Black

What’s in the Box?

  • MEB 104 (Black)
  • Quick guide
  • Mounting material
