MG12X 12-Ch Mixing Console 6 Mic / 12 Line + SPX with Faders

« return to previous page

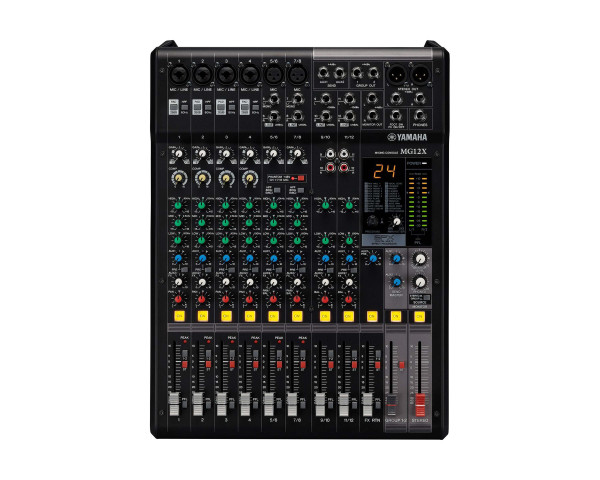

Yamaha MG12X 12-Ch Mixing Console 6 Mic / 12 Line + SPX with Faders - Main Image

Yamaha MG12X 12-Ch Mixing Console 6 Mic / 12 Line + SPX with Faders - Image 1

Yamaha MG12X 12-Ch Mixing Console 6 Mic / 12 Line + SPX with Faders - Image 2

Yamaha MG12X 12-Ch Mixing Console 6 Mic / 12 Line + SPX with Faders - Image 3

Yamaha MG12X 12-Ch Mixing Console 6 Mic / 12 Line + SPX with Faders - Image 4

Price:: RRP: £426.00 inc VAT
Code:: YAMMG12X
Manufacturer Code:: VFK1280
Brand:: Yamaha

Main Features

12-Channel Mixing Console
Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
2 GROUP Buses + 1 Stereo Bus
2 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalogue of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

As same as XU models, X models have SPX effects. Not to mention live session, but also installation cases like conference rooms, banquet halls and weddings, users can have wide range of use. Stylish grey colour models enhance your performance.

Product Features

12-Channel Mixing Console
Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
2 GROUP Buses + 1 Stereo Bus
2 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Internal universal power supply for world-wide use
Optional Rack Mount Kit RK-MG12 Available
Metal chassis
Dimensions(W×H×D): 308 mm x 118 mm x 422 mm (12.1" x4.6" x16.6")
Net Weight: 4.2 kg (9.3 lbs.)

Product Specifications

On-board processors: SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
Phantom power: +48 V
Input Channels
- Mono[MIC/LINE]: 4
- Mono/Stereo[MIC/LINE]: 2
- Stereo[LINE]: 2
Output Channels
- STEREO OUT: 2
- MONITOR OUT: 1
- PHONES: 1
- AUX SEND: 2
- GROUP OUT: 2
Bus: Stereo: 1, GROUP: 2, AUX: 2 (incl. FX)
Input Channel Function
- PAD: 26 dB (Mono)
- HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
- COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
- EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
- EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
- EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
- PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
- Level Meter: 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
Total harmonic distortion: 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response: +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level
- Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
- Residual output noise: -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk: -78 dB
Power requirements: AC 100 – 240 V, 50 / 60 Hz
Power consumption: 22 W
Dimensions (WxHxD): 308 mm (12.1") x 118 mm (4.6") x 422 mm (16.6")
Net weight: 4.2 kg (9.3 lbs.)
