MKH 800 TWIN Ni Universal Studio Condenser Microphone Nickel

« return to previous page

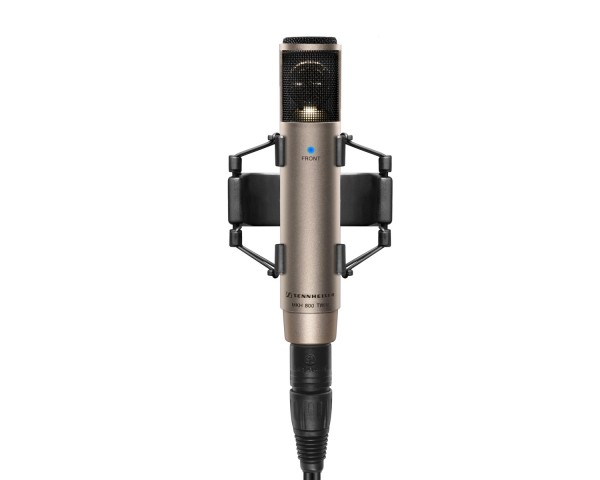

Sennheiser MKH 800 TWIN Ni Universal Studio Condenser Microphone Nickel - Main Image
Sennheiser MKH 800 TWIN Ni Universal Studio Condenser Microphone Nickel - Image 1
Sennheiser MKH 800 TWIN Ni Universal Studio Condenser Microphone Nickel - Image 2
Sennheiser MKH 800 TWIN Ni Universal Studio Condenser Microphone Nickel - Image 3
Price:
RRP: £4,116.00 inc VAT
Code:
SENMKH8TWNIK
Manufacturer Code:
502431
Brand:
Sennheiser

Quantity required:

Main Features

  • High linearity of the transducers minimises the signal distortions and ensures the transparency of the sound even at high sound levels.
  • The frequency response extends to 50 kHz, thus improving the resolution for complex acoustic details.
  • Stable pick-up patterns minimise sound distortion in the direct and diffuse field.
  • Negative acoustic effects caused by the housing and the sound inlet basket are minimised.
  • The small, slim design and the optionally dark housing design (Nextel) make it visually unobtrusive.
  • Finish: Nickel
Share:

MKH800 TWIN Ni Universal Studio Condenser Microphone - Nickel

The MKH 800 TWIN is a universal studio condenser microphone of exceptional quality. It includes a dual capsule consisting of two symmetrical push-pull transducers with high linearity. This is a "side fire" microphone with the two cardioid pick-up patterns of the transducer aligned back-to-back across the axis of the microphone. The signals of both transducers are not combined in the microphone in order to generate differing pick-up patterns but are available separately as two channels at the microphone output. This allows the pick-up patterns of the MKH 800 TWIN to be remotely adjusted. The signals can be combined in any desired way in the mixing console in order to create all pick-up patterns from omni-directional to figure-8 with an infinite number of intermediate stages. Based on the legendary MKH 800, this microphone opens up to a new dimension of studio recordings.

Product Features

  • The remote adjustability and the variable pick-up patterns make the MKH 800 TWIN a universal main microphone, soloist microphone or supporting microphone.
  • The pick-up patterns can be set and optimised under monitoring conditions. In other words, it is not necessary to fix the pick-up patterns definitively before recording.
  • A wide range of mixes for stereo and surround are possible (including in parallel).
  • Saving of the microphone signals in two channels also allows an unlimited range of mixes to be realised at a later date.
  • The high sensitivity ensures interference-free signal paths as a result of high signal levels. The inherent noise of downstream microphone amplifiers is thus of minor importance.
  • Very low inherent noise prevents the masking of filigree sound structures. The depth of the acoustic can be heard more clearly too.
  • High linearity of the transducers minimises the signal distortions and ensures the transparency of the sound even at high sound levels.
  • The frequency response extends to 50 kHz, thus improving the resolution for complex acoustic details.
  • Stable pick-up patterns minimise sound distortion in the direct and diffuse field.
  • Negative acoustic effects caused by the housing and the sound inlet basket are minimised.
  • The small, slim design and the optionally dark housing design (Nextel) make it visually unobtrusive.
  • Finish: Nickel

Product Specifications

General

  • Frequency response (Microphone):  30 - 50000 Hz
  • Transducer principle (Microphone):  RF condenser microphone
  • Pick-up pattern:  omni-directional, cardioid, figure-of-eight
  • Sensitivity in free field, no load (1kHz):  40 mV/Pa (-28 dBV)
  • Nominal impedance:  100 Ohm
  • Min. terminating impedance:  2000 Ohm
  • Phantom powering:  48V +/- 4V
  • Equivalent noise level:  12 dB (A)
  • Equivalent noise level weighted as per CCIR 468-3:  20 dB
  • Maximum sound pressure level (passive):  134 dB SPL
  • Current consumption:  2 x 3.1 mA
  • Dynamic range:  122 dB(A), 114 dB (CCIR)

Physical

  • Dimensions:  d 27 mm, l 136 mm
  • Weight:  172 g
  • Finish:  Nickel

What's in the Box?

  • MKH 800 TWIN studio condenser microphone
  • MZQ 80 microphone clamp
  • MZS80 shock mount
  • AC 20 adaptor cable (1 x XLR-5 socket to 2 x XLR-3 connector)
  • User manual
  • Aluminium transport case
