MKH 8040 Stereoset Pair of MKH 8040 Cardioid Condenser Mics

« return to previous page

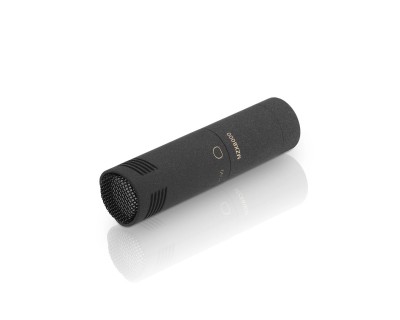

Sennheiser MKH 8040 Stereoset Pair of MKH 8040 Cardioid Condenser Mics - Main Image
Price:
RRP: £2,970.00 inc VAT
Code:
SENMKH8040SM
Manufacturer Code:
506290
Brand:
Sennheiser

Quantity required:

Main Features

  • Stereoset pair of mics
  • Cardioid pick-up pattern
  • Modular Design
  • Wide frequency response: 30 – 50,000 Hz
  • Extremely low distortion
  • Extremely low inherent self-noise
Share:

MKH 8040 - Stereoset

Due to its cardioid pick-up pattern the MKH 8040 is perfectly suitable for a wide range of applications. It features a balanced frequency response throughout the whole pick-up pattern, as well as a significantly reduced pick-up of rear sound without depriving it of its natural timbre: Very valuable talents when used in rooms with poor acoustics or when disturbing sounds impinge mainly from the rear.

Product Features

  • Stereoset pair of mics
  • Cardioid pick-up pattern
  • Modular Design
  • Wide frequency response: 30 – 50,000 Hz
  • Extremely low distortion
  • Extremely low inherent self-noise
  • Balanced frequency response within the pick-up pattern
  • Very even directional diagram
  • Non-reflective Nextel® coating
  • Ideal as a spot microphone and for surround recordings
  • Timbrally identical with the other 8000-series microphones for optimum aural compatibility
  • Article No: 506290

Product Specifications

General

  • Transducer principle (Microphone):  RF condenser microphone
  • Frequency response:  30 - 50000 Hz
  • Audio output:  XLR-3M balanced, transformerless, floating
  • Pick-up pattern:  Cardioid
  • Sensitivity in free field, no load (1kHz):  20 mV/Pa (-34 dBV/Pa)
  • Nominal impedance:  25 Ω
  • Min. terminating impedance:  1000 Ω
  • Phantom powering:  48 V +/- 4 V
  • Equivalent noise level:  13 dB(A)
  • Equivalent noise level weighted as per CCIR 468-3:  22 dB
  • Maximum sound pressure level (passive):  142 dB SPL
  • Current consumption:  3,3 mA

Physical

  • Dimensions:  Ø 19 mm, L 41 mm (74 mm with XLR module)
  • Weight:  25 g (55 g with XLR module)

What's in the Box?

  • 2x Microphone head MKHC 8040
  • 2x XLR module MZX 8000
  • 2x Microphone clip MZQ 8000
  • 2x Windshield MZW 8000
  • User manual
  • Aluminium transport case
