Modena Hub Wireless Presentation Hub for BYOD / BYOC Spaces

« return to previous page

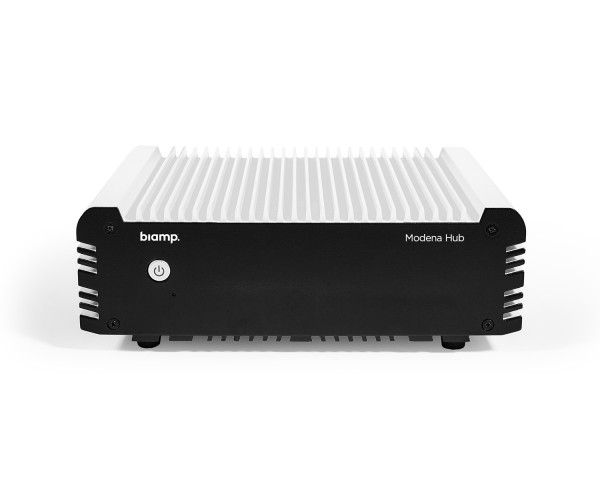

Biamp Modena Hub Wireless Presentation Hub for BYOD / BYOC Spaces - Main Image
Biamp Modena Hub Wireless Presentation Hub for BYOD / BYOC Spaces - Image 1
Biamp Modena Hub Wireless Presentation Hub for BYOD / BYOC Spaces - Image 2
Price:
RRP: £1,000.80 inc VAT
Code:
BIAMODHUB
Manufacturer Code:
913.1736.900
Brand:
Biamp

Quantity required:

Main Features

  • Enjoy a client-free experience with your web browser.
  • Meet everywhere: With Modena Hub, any place is a meeting room.
  • Enable a display to receive content by connecting a computer running the web or software client, or and Android dongle; or run the Android TV app directly on a smart TV.
  • All personal devices can send and receive presentations directly to the screen of participants’ laptops, tablets, or mobile devices.
  • Configure Modena Hub for large teaching spaces and give everyone a perfect view using Auditorium mode, for up to 150 users.
  • IT administrators have quick access to the configuration of all units installed in an enterprise via a powerful management web interface.
Share:

Modena Hub Wireless Presentation Hub for BYOD / BYOC Spaces

Modena™ Hub is a wireless presentation hub that supports the new ways in which people are increasingly accustomed to working. Ideal for BYOD and BYOC spaces, Modena Hub allows participants to connect to meeting room AV equipment and USB accessories wirelessly, as well as enabling any participant to wirelessly receive its AV streams during a video conferencing session. Modena Hub supports most UC software and hardware devices, while enabling the user to wirelessly share content with other meeting participants. Modena Hub also connects to AV peripherals via USB and HDMI, and can support multiple USB devices via a standard USB hub or by connecting a Devio SCR-20 or SCR-25.

Product Features

  • Enjoy a client-free experience with your web browser.
  • Meet everywhere: With Modena Hub, any place is a meeting room.
  • Enable a display to receive content by connecting a computer running the web or software client, or and Android dongle; or run the Android TV app directly on a smart TV.
  • All personal devices can send and receive presentations directly to the screen of participants’ laptops, tablets, or mobile devices.
  • Configure Modena Hub for large teaching spaces and give everyone a perfect view using Auditorium mode, for up to 150 users.
  • IT administrators have quick access to the configuration of all units installed in an enterprise via a powerful management web interface.

Product Specifications

General

  • Modena Hub unit specifications:
  • Wireless presentation resolution:  Up to HD 1080p@30fps
  • Wireless USB feed resolution:  Up to HD 720p@30fps
  • Wired network connection:  Ethernet RJ-45 port, 1000 Mbit/s
  • USB port:  USB 2.0/3.0
  • Media port:  HDMI
  • Power:  External power adaptor 12V DC
  • Environmental
    • Ambient Operating Temperature Range:  32 - 104° F (0 – 40° C)
    • Ambient Storage Temperature Range:  -4 - 140° F (-20 - 60° C)
    • Humidity:  0-95% relative humidity (non-condensing)
    • Altitude:  0-6,600 ft (0-2000m) MSL
  • Modena client requirements:
    • Desktop Client
      • CPU:  Intel® i5 equivalent or faster
      • Web browser:  Chrome™, Firefox™, Edge™
      • Windows® (presenter/viewer):  Windows 10 .NET®
      • Framework 4.5; Microsoft® Direct3D
      • Mac OSX® (presenter/viewer):  Mac OSX 10.11 or higher
    • Mobile Client
      • Android®:  Android 8 or higher
      • iOS®:  iOS 11 or higher
  • Network
    • Minimum Bandwidth:
      • 4 Mbps average / 15 Mbps peak per connected client  (upstream when presenting; downstream when receiving)
      • Additional 4 Mbps average / 15 Mbps peak for the videoconference host when using the Wireless USB feature
    • Wireless Connection:
      • 2.4Ghz 802.11n compatible Wifi interface
      • 5Ghz 802.11ac compatible
      • Wifi interface (recommended)
      • Minimum distance between device(s) and access point: ~ 3 feet (~ 1 meter)
    • Signal Strength:
      • RSSI on connected devices:  stable above -65dBm (recommended > - 60dBm)
      • SNR (RSSI - Noise) on connected devices:  stable above 25dB (recommended > 35dB

Physical

  • Height:  2 inches (51 mm)
  • Width:  6.3 inches (160 mm)
  • Depth:  5.2 inches (132 mm)
  • Weight:  2.4 lbs (1.1 kg)

Product Downloads
