Modena Server Multi-Room Wireless Presentation Hub for Smart Room

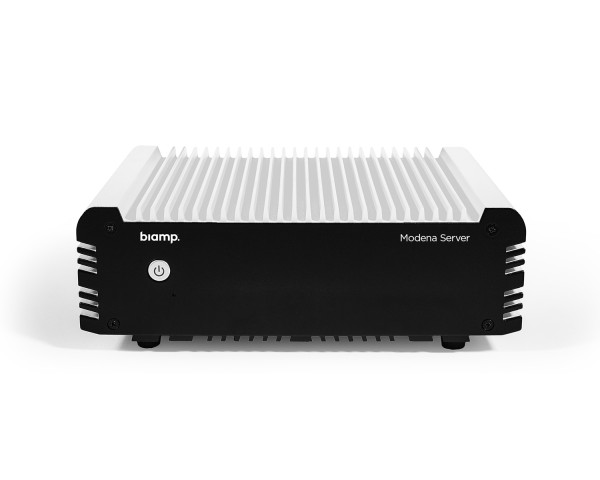

Biamp Modena Server Multi-Room Wireless Presentation Hub for Smart Room - Main Image

Biamp Modena Server Multi-Room Wireless Presentation Hub for Smart Room - Image 1

Biamp Modena Server Multi-Room Wireless Presentation Hub for Smart Room - Image 2

Price:: RRP: £1,500.00 inc VAT
Code:: BIAMODSER
Manufacturer Code:: 913.1738.900
Brand:: Biamp

Main Features

Enjoy a client-free experience with your web browser.
Meet anywhere: With Modena Server, any place is a meeting room.
Enable a display to receive content by connecting a computer running the web or software client, or an Android dongle; or run the Android TV app directly on a smart TV.
Provides wireless screen sharing, content rebroadcast and BYOD multicam conferencing
Supports up to 7 virtual meeting areas.
All personal devices can send and receive presentations directly to the screen of participants' laptops, tablets, or mobile devices.

Modena™ Server is a multi-room wireless presentation device. It can support up to seven collaboration spaces per device, and delivers screen-sharing, content rebroadcast and multi-cam BYOD conferencing. It enables unparalleled flexibility for organizations, allowing teams to collaborate anywhere, with no fixed technology required. The Server expands the capabilities of the Modena Hub/Hub+.

The Server creates virtual meeting rooms and is a central management tool which supports multiple Modena Hub/Hub+ devices in a corporate environment.

Product Features

Enjoy a client-free experience with your web browser.
Meet anywhere: With Modena Server, any place is a meeting room.
Enable a display to receive content by connecting a computer running the web or software client, or an Android dongle; or run the Android TV app directly on a smart TV.
Provides wireless screen sharing, content rebroadcast and BYOD multicam conferencing
Supports up to 7 virtual meeting areas.
All personal devices can send and receive presentations directly to the screen of participants' laptops, tablets, or mobile devices.
Management system for Modena family of products.
Covered by Biamp Systems’ five-year warranty.

Product Specifications

General

Modena Server unit specifications:
- Wireless presentation resolution: Up to HD 1080p@30fps
- Wired network connection: Ethernet RJ-45 port, 1000 Mbit/s
- USB port: only for service
- Media port:
- Power: External power adaptor 12V DC
Environmental
- Ambient Operating Temperature Range: 32 - 104° F (0 – 40° C)
- Ambient Storage Temperature Range: -4 - 140° F (-20 - 60° C)
- Humidity: 0-95% relative humidity (non-condensing)
- Altitude: 0-6,600 ft (0-2000m) MSL
Modena client requirements:
- Desktop Client
  - CPU: Intel® i5 equivalent or faster
  - Web browser: Chrome™, Firefox™, Edge™
  - Windows® (presenter/viewer): Windows 10 .NET®
  - Framework 4.5; Microsoft® Direct3D
  - Mac OSX® (presenter/viewer): Mac OSX 10.11 or higher
- Mobile Client
  - Android®: Android 8 or higher
  - iOS®: iOS 11 or higher
Network
- Minimum Bandwidth: 4 Mbps average / 15 Mbps peak per connected client (upstream when presenting; downstream when receiving)
- Wireless Connection:
  - 2.4Ghz 802.11n compatible
  - Wifi interface
  - 5Ghz 802.11ac compatible
  - Wifi interface (recommended)
  - Minimum distance between device(s) and access point: ~ 3 feet (~ 1 meter)
- Signal Strength:
  - RSSI on connected devices: stable above -65dBm (recommended > - 60dBm)
  - SNR (RSSI - Noise) on connected devices: stable above 25dB (recommended > 35dB
