MX405/N Microflex 5" Gooseneck No Capsule Microphone + Preamp

« return to previous page
Shure MX405/N Microflex 5 Gooseneck No Capsule Microphone + Preamp - Main Image
Shure MX405/N Microflex 5 Gooseneck No Capsule Microphone + Preamp - Image 1
Shure MX405/N Microflex 5 Gooseneck No Capsule Microphone + Preamp - Image 2
Shure MX405/N Microflex 5 Gooseneck No Capsule Microphone + Preamp - Image 3
Price:
RRP: £336.00 inc VAT
Code:
SHUMX405N
Manufacturer Code:
MX405/N
Brand:
Shure

Quantity required:

Main Features

  • Gooseneck length: 5 inch / 12.7 cm
  • Wide dynamic range and smooth frequency response
  • RF filtering with CommShield™ technology
  • Bi-Colour LED at gooseneck bottom
  • Includes MX400SMP Surface mount preamp
  • No Capsule
Share:

MX405/N Microflex 5" Gooseneck No Capsule Microphone + Preamp

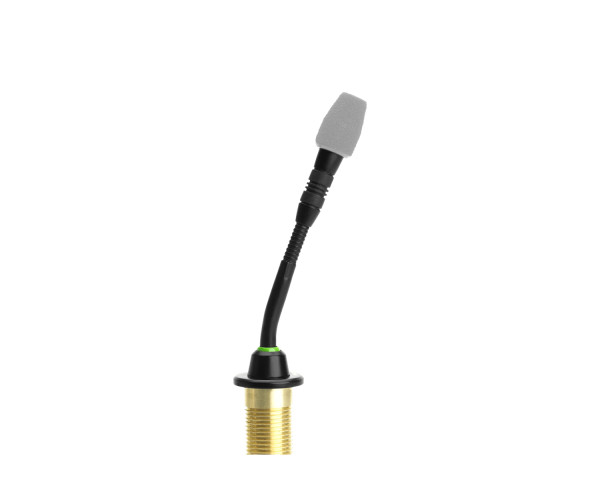

The MX405 is a gooseneck microphone with a Bi-Colour LED or red light ring status display. It has a 12.7 cm / 5 inch gooseneck and is suitable for boardrooms and other sites where aesthetics are important.

Product Features

  • Gooseneck length: 5 inch / 12.7 cm
  • Low profile, aesthetic design
  • Wide dynamic range and smooth frequency response
  • RF filtering with CommShield™ technology
  • Bi-Colour LED at gooseneck bottom
  • No Capsule

Product Specifications

  • Type:  Condenser (electret bias)
  • Frequency Response:  50–17000 Hz
  • Polar Pattern (at 1 kHz):  N/A
  • Output Impedance:  EIA Rated at 150 Ω (170 Ω actual)
  • Output Configuration:  Active Balanced
  • Sensitivity (at 1 kHz , open circuit voltage):  N/A
  • Maximum SPL (1 kHz at 1% THD, 1 kW load):  N/A
  • Equivalent Output Noise (A-weighted):  N/A
  • Signal-to-Noise Ratio  (referenced at 94 dB SPL at 1 kHz):  N/A
  • Dynamic Range (1 kΩ load at 1 kHz):  93 dB
  • Common Mode Rejection (10 Hz to 100 kHz):  45 dB minimum
  • Preamplifier Output Clipping Level (1% THD):  -8 dBV (0.4 V)
  • Polarity:  3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
  • Weight:  MX405: 0.054 kg (0.119 lbs)
  • Logic Connections:
    • LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
    • LOGIC OUT: Active low (≤1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kΩ).
  • Mute Switch Attenuation:  -50 dB minimum
  • Environmental Conditions:
    • Operating Temperature:  -18–57 °C (0–135 °F)
    • Storage Temperature:  -29–74 °C (-20–165 °F)
    • Relative Humidity:  0–95%
  • Power Requirements:  48–52 Vdc phantom, 8.0 mA

What's in the Box?

  • 1 x RK513WS Snap-fit Foam Windscreen
  • 1 x MX400SMP Surface Mount Preamp
  • 1 x 65A2190 Fastening Wing Nut
  • 2 x 66A405 Rubber Isolation Rings
  • 1 x 95A2529 5-Pin XLR Female Connector
