N8010EX IP Intercom Exchange 16-Lines 2-Links

« return to previous page

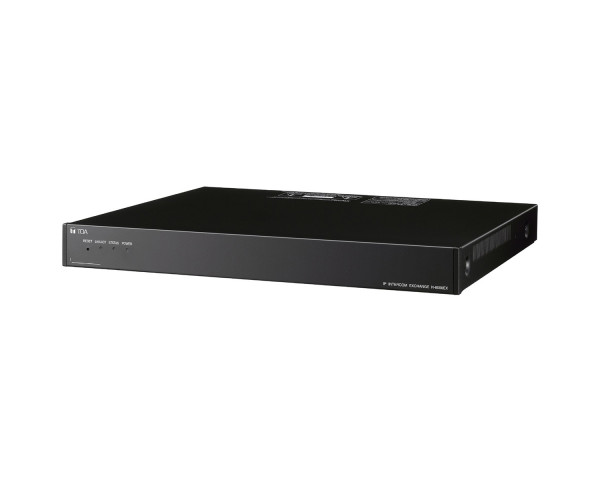

TOA N8010EX IP Intercom Exchange 16-Lines 2-Links - Main Image
Price:
RRP: £3,234.00 inc VAT
Code:
TOAN8010EX
Manufacturer Code:
N-8010EX
Brand:
TOA

Quantity required:

Main Features

  • 10 Base-T / 100 Base-TX Ethernet network connection
  • 16 station capacity
  • 2-wire connection between stations and exchange
  • 1 internal / 2 external speech links
  • 1 unit size
  • Finish: Black
Share:

N8010EX IP Intercom Exchange 16-Lines 2-Links

The IP Intercom Exchange uses packet audio technology to permit the connection of up to sixteen N-8000 Series stations. Hands-free conversation is possible between stations. Moreover, the exchange is equipped with a networking interface, allowing up to 192 exchanges to be connected over a network using additional IP intercom exchanges. The Exchange can be mounted in an EIA standard rack (1-unit size) or to a wall using the supplied bracket.

Product Features

  • 10 Base-T / 100 Base-TX Ethernet network connection
  • 16 station capacity
  • 2-wire connection between stations and exchange
  • 1 internal / 2 external speech links
  • 1 unit size
  • Finish: Black

Product Specifications

  • Network:  10BASE-T/100BASE-TX (Automatic-Negotiation)
  • Network protocol:  TCP/IP, UDP, ARP, ICMP, HTTP, RTP, IGMP
  • Audio packet transmission system:  Unicast, Multicast
  • Voice packet loss recovery:  silence insertion
  • Audio delay time:  80 ms, 320 ms (controllable on the software)
  • Applicable model:  N-8050DS, N-8031MS, N-8000MS, N-8010MS, N-8011MS, N-8033MS, N-8065MS Q-TEE, N-8020MS, N-8050SB, N-8050SB
  • Power source:  220 - 240 V AC, 50 / 60 Hz
  • Power consumption:  50 W (at rated), 75 W (max.)
  • Speech link:  Internal: 1 / External: 2
  • Line capacity:  16
  • Wiring method:  1 set of twisted pair cable
  • Transmission range:  Max. 1500 m (ø 0.65 mm, Loop resistance < 170 Ω) / 2,900 m (ø 0.9 mm)
  • Paging output:  Station paging only
  • Operating humidity:  90 % RH or less (no condensation)
  • Operating temperature:  0 °C to +40 °C
  • Finish:  Steel plate, pre-coated, 30% gloss, black
  • Dimensions:  420 x 44.3 x 356 mm (W x H x D)
  • Weight:  4.2 kg
  • Accessory (included)
    • AC power cord (2 m) x 1
    • CD (for PC setting, maintenance use) x 1
    • Mini-clamp plug (2 pins) x 20, Plastic foot x 4
    • Screw for fitting plastic foot x 4
    • Rack mounting bracket x 2
    • Screw for rack mounting x 4
    • Wall mounting bracket x 2
    • Screw for mounting bracket x 8
    • Screw for wall mounting x 4

What's in the Box?

  • AC power cord (2 m) x 1
  • CD (for PC setting, maintenance use) x 1
  • Mini-clamp plug (2 pins) x 20, Plastic foot x 4
  • Screw for fitting plastic foot x 4
  • Rack mounting bracket x 2
  • Screw for rack mounting x 4
  • Wall mounting bracket x 2
  • Screw for mounting bracket x 8
  • Screw for wall mounting x 4
