Nexus Q 4x12" Horn-Loaded Upper Bass Speaker 2x2000W Black/Red

« return to previous page

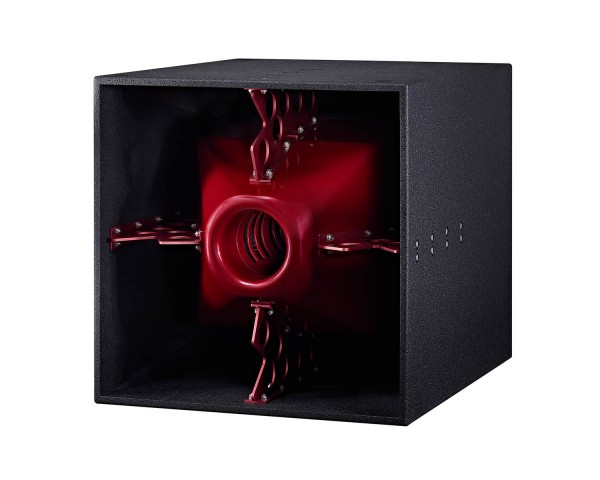

Void Acoustics Nexus Q 4x12 Horn-Loaded Upper Bass Speaker 2x2000W Black/Red - Main Image
Void Acoustics Nexus Q 4x12 Horn-Loaded Upper Bass Speaker 2x2000W Black/Red - Image 1
Void Acoustics Nexus Q 4x12 Horn-Loaded Upper Bass Speaker 2x2000W Black/Red - Image 2
Void Acoustics Nexus Q 4x12 Horn-Loaded Upper Bass Speaker 2x2000W Black/Red - Image 3
Void Acoustics Nexus Q 4x12 Horn-Loaded Upper Bass Speaker 2x2000W Black/Red - Image 4
Void Acoustics Nexus Q 4x12 Horn-Loaded Upper Bass Speaker 2x2000W Black/Red - Image 5
Void Acoustics Nexus Q 4x12 Horn-Loaded Upper Bass Speaker 2x2000W Black/Red - Image 6
Void Acoustics Nexus Q 4x12 Horn-Loaded Upper Bass Speaker 2x2000W Black/Red - Image 7
Void Acoustics Nexus Q 4x12 Horn-Loaded Upper Bass Speaker 2x2000W Black/Red - Image 8
Price:
POA
Code:
VOINEXQBR
Manufacturer Code:
IT1582
Brand:
Void Acoustics

Quantity required:

Price on Application * please call sales team on
01525 850085 for more info

Main Features

  • Four high power 12” transducers
  • Front loaded horn
  • High efficiency
  • Newly developed ‘pressure gradient’ arrangement
  • Dual Neutrik speakON™ NL4s
  • Colour:  Black/Red
Share:

Nexus Q 4x12" Horn-Loaded Upper Bass Speaker 2x2000W - Black/Red

As part of the Nexus LF system, the Nexus Q delivers the upper bass frequencies via a new enclosure design. The four high power 12” drivers use a front loaded horn to achieve high efficiency and a rear port with a newly developed ‘pressure gradient’ arrangement.

This configuration is far more beneficial than previous loading techniques and results in an enclosure with unparalleled output, definition, and the total elimination of colouration from any turbulent or mechanical port noise. Dual Neutrik speakON™ NL4s are provided for driver connections.

Custom RAL colour options also available. Please contact our friendly sales team to order.

Product Features

  • Four high power 12” transducers
  • Front loaded horn
  • High efficiency
  • Newly developed ‘pressure gradient’ arrangement

Applications

  • High impact nightclub
  • VIP room
  • Indoor and outdoor dance events
  • Bar, club, lounge

Custom RAL colour options also available. Please contact our friendly sales team to order.

Product Specifications

General

  • Frequency Response:  60 Hz - 150 Hz ±3dB
  • Efficiency:  110 dB 1W/1m
  • Crossover Points:  70 Hz
  • Nominal Impedance:  2 x4 Ω
  • Power Handling:  2 x 2000 W AES
  • Maximum Output:  145 dB cont, 151 dB peak
  • Driver Configuration:  4 x 12”
  • Dispersion:  Array dependant
  • Connectors:  2 x 4-pole SpeakON™

Physical

  • Dimensions:  (H) 754 mm x (W) 738 mm x (D) 860 mm (29.7” x 29” x 33.9”)
  • Weight:  130 kg (286.6 lbs)
  • Colour:  Black/Red
