Nexus X 8x12" Low-Frequency Loudspeaker 2x4000W Black/Red

« return to previous page

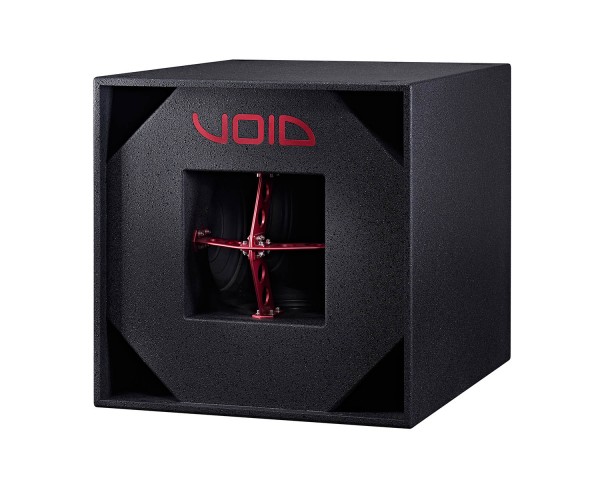

Void Acoustics Nexus X 8x12 Low-Frequency Loudspeaker 2x4000W Black/Red - Main Image
Void Acoustics Nexus X 8x12 Low-Frequency Loudspeaker 2x4000W Black/Red - Image 1
Void Acoustics Nexus X 8x12 Low-Frequency Loudspeaker 2x4000W Black/Red - Image 2
Void Acoustics Nexus X 8x12 Low-Frequency Loudspeaker 2x4000W Black/Red - Image 3
Void Acoustics Nexus X 8x12 Low-Frequency Loudspeaker 2x4000W Black/Red - Image 4
Void Acoustics Nexus X 8x12 Low-Frequency Loudspeaker 2x4000W Black/Red - Image 5
Void Acoustics Nexus X 8x12 Low-Frequency Loudspeaker 2x4000W Black/Red - Image 6
Void Acoustics Nexus X 8x12 Low-Frequency Loudspeaker 2x4000W Black/Red - Image 7
Void Acoustics Nexus X 8x12 Low-Frequency Loudspeaker 2x4000W Black/Red - Image 8
Price:
POA
Code:
VOINEXXBR
Manufacturer Code:
IT1583
Brand:
Void Acoustics

Quantity required:

Price on Application * please call sales team on
01525 850085 for more info

Main Features

  • 8000 W
  • Eight 12” transducers
  • Extreme amounts of excursion with very low distortion
  • A highly efficient LF system
  • Deceptively compact enclosure
  • Minimal resonance
Share:

Nexus X 8x12" Low-Frequency Loudspeaker 2x4000W - Black/Red

The 8,000 Watt Nexus X serves the lower spectrum of the Nexus LF system. It does this with unmatched displacement via its eight 12” drivers, each capable of extreme amounts of excursion with very low distortion.

Efficiency is also off the charts thanks to the vast number of transducers all working in unison in an optimally designed, yet deceptively compact enclosure, using the latest in material technology to assist in minimising resonances. Dual Neutrik speakON™ NL4s are provided for driver connections.

Custom RAL colour options also available. Please contact our friendly sales team to order.

Product Features

  • 8000 W
  • Eight 12” transducers
  • Extreme amounts of excursion with very low distortion
  • A highly efficient LF system
  • Deceptively compact enclosure
  • Minimal resonance

Applications

  • High impact nightclub
  • VIP room
  • Bar, club, lounge

Custom RAL colour options also available. Please contact our friendly sales team to order.

Product Specifications

General

  • Frequency Response:  36 Hz - 100 Hz -3dB
  • Efficiency:  108 dB 1W/1m
  • Crossover Points:  70 Hz
  • Nominal Impedance:  2 x 4 Ω
  • Power Handling:  2 x 4000 W AES
  • Maximum Output:  146 dB cont 152 dB peak
  • Driver Configuration:  8 x 12” neodymium
  • Dispersion:  Array dependant
  • Connectors:  2 x 4-pole speakON™ NL4

Physical

  • Dimensions:  (H) 746 mm x (W) 738 mm x (D) 860 mm (29.4” x 29” x 33.9”)
  • Weight:  137 kg (302 lbs)
  • Enclosure:  18 mm birch plywood
  • Finish:  Textured ‘TourCoat’ polyurea
  • Grille:  Perforated steel
  • Colour:  Black/Red
