NX 945-A 15" +4" 2-Way Active Loudspeaker System 2100W Peak Black

« return to previous page

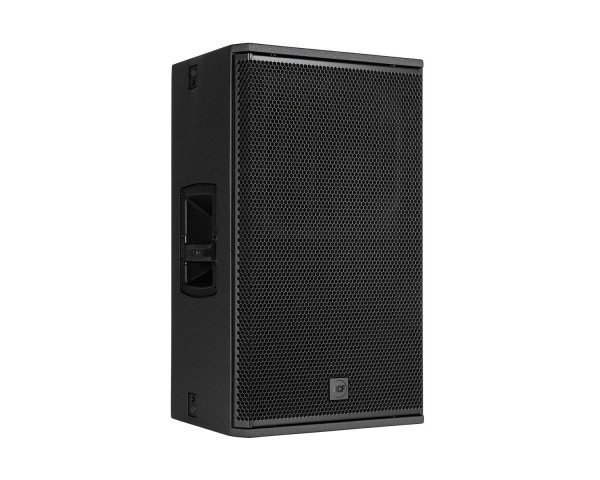

RCF NX 945-A 15 +4 2-Way Active Loudspeaker System 2100W Peak Black - Main Image
RCF NX 945-A 15 +4 2-Way Active Loudspeaker System 2100W Peak Black - Image 1
RCF NX 945-A 15 +4 2-Way Active Loudspeaker System 2100W Peak Black - Image 2
RCF NX 945-A 15 +4 2-Way Active Loudspeaker System 2100W Peak Black - Image 3
RCF NX 945-A 15 +4 2-Way Active Loudspeaker System 2100W Peak Black - Image 4
RCF NX 945-A 15 +4 2-Way Active Loudspeaker System 2100W Peak Black - Image 5
RCF NX 945-A 15 +4 2-Way Active Loudspeaker System 2100W Peak Black - Image 6
RCF NX 945-A 15 +4 2-Way Active Loudspeaker System 2100W Peak Black - Image 7
RCF NX 945-A 15 +4 2-Way Active Loudspeaker System 2100W Peak Black - Image 8
RCF NX 945-A 15 +4 2-Way Active Loudspeaker System 2100W Peak Black - Image 9
RCF NX 945-A 15 +4 2-Way Active Loudspeaker System 2100W Peak Black - Image 10
Price:
RRP: £1,524.00 inc VAT
Code:
RCFNX945A
Manufacturer Code:
13000768
Brand:
RCF

Quantity required:

Main Features

  • Up to 135 dB Sound Pressure Level
  • 2100W Class-D Bi-Amplification
  • 45-20000 Hz linear frequency response
  • 4" Titanium/Neodymium Compression Driver
  • 15" neodymium Woofer
  • FiRPHASE zero degrees phase technology
Share:

NX 945-A 15" +4" 2-Way Active Loudspeaker System 2100W Peak Black

NX 945-A is masterfully engineered from the ground up to deliver stellar audio performance for sound providers, small bands and DJs. The combination of a 4" titanium/neodymium compression driver, 15" neodymium woofer - two-channel 2,100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 70° coverage for the listening area with up to 135 dB SPL, distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 945-A blends high performance and reliability in a compact package. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute sound clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.

Product Features

  • Up to 135 dB Sound Pressure Level
  • 2100W Class-D Bi-Amplification
  • 45-20000 Hz linear frequency response
  • 4" Titanium/Neodymium Compression Driver
  • 15" neodymium Woofer
  • FiRPHASE zero degrees phase technology
  • Bass Motion Control woofer excursion management
  • Six M10 and four Quick Lock rigging points

Product Specifications

Acoustical Specifications

  • Frequency Response:  45 Hz ÷ 20000 Hz
  • Max SPL @ 1m:  135 dB
  • Horizontal coverage angle:  100°
  • Vertical coverage angle:  70°

Transducers

  • Compression Driver:  1 x 1.4'' neo, 4.0'' v.c
  • Woofer:  15'' neo, 3.5'' v.c

Input/Output Section

  • Input signal:  bal/unbal
  • Input connectors:  Combo XLR/Jack
  • Output connectors:  XLR
  • Input sensitivity:  -2 dBu/+4 dBu

Processor Section

  • Crossover Frequencies:  650Hz
  • Protections:  Thermal, RMS
  • Limiter:  Soft Limiter
  • Controls:  Linear, Boost, Stage, Volume

Power Section

  • Total Power:  2100 W Peak
  • High frequencies:  700 W Peak
  • Low frequencies:  1400 W Peak
  • Cooling:  Convection
  • Connections:  Powercon TRUE1 TOP IN/OUT

Physical Specifications

  • Cabinet/Case Material:  Plywood
  • Hardware:
    • 2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear
    • 2 each side quick lock pin seat
  • Handles:  1 x Side
  • Pole mount/Cap:  Yes
  • Grille:  Steel
  • Colour:  Black

Dimensions

  • Height:  705 mm / 27.76 inches
  • Width:  420 mm / 16.54 inches
  • Depth:  451 mm / 17.76 inches
  • Weight:  22.4 kg / 49.38 lbs
