NX 45-A 15

« return to previous page

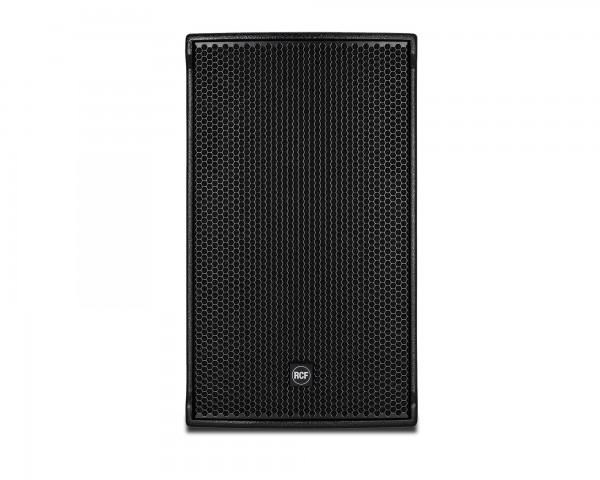

RCF NX 45-A 15 Active 2-Way PA Loudspeaker Class-D Amp 700W Black - Image 1

RCF NX 45-A 15 Active 2-Way PA Loudspeaker Class-D Amp 700W Black - Image 2

RCF NX 45-A 15 Active 2-Way PA Loudspeaker Class-D Amp 700W Black - Image 3

RCF NX 45-A 15 Active 2-Way PA Loudspeaker Class-D Amp 700W Black - Image 4

Price:: RRP: £1,508.40 inc VAT
Code:: RCFNX45
Manufacturer Code:: 13000552
Brand:: RCF

Main Features

An active speaker specifically designed to be the everyday tool for rental companies
One of the most flexible speakers for deploying high-power and pristine sound
1400 W 2-way class-D amplifier
15" neodymium woofer, 3.5" voice coil
Horn loaded 4.0''neodymium c. driver
Multiple rigging points

NX45A 15" Active 2-Way Multipurpose Speaker CLASS-D Amp 700W

The NX 45-A is an active speaker specifically designed to be the everyday tool for rental companies and professional musicians. It’s one of the most flexible speakers for deploying high-power and pristine sound as a stand-alone FOH system or as a satellite (with subwoofer) but either as a stage monitor or a front, down or side fill speaker.

New Perspective on Linearity

RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow achieving a coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.

Superior Compression Drivers

The RCF Compression Drivers in pure Titanium are perfect for a crossover point lower than 800 Hz. This allows a better impulse response, fast decay and superior efficiency. Lightweight and powerful, our neodymium drivers are a reference in performance and reliability.

The voice coil features a high-temperature Kapton former. The assembly process takes advantage of the RCF proprietary Direct Drive technology. The diaphragm’ s suspension has been designed following extensive studies aimed at minimising distortion and extending low-frequency range.

Powerful Class D Amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. NX amplifiers deliver an ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the NX amplifiers present an SMPS power supply section in order to produce maximum output and minimum transportation weight.

Product Features

1400 W 2-way class-D amplifier
133 dB SPL Max
45 – 20000 Hz Frequency Range
90° x 50° constant directivity coverage
15" neodymium woofer, 3.5" voice coil
Horn loaded 4.0''neodymium c. driver
Multiple rigging points

Product Specifications

General

Acoustical Specifications
- Frequency Response: 45 Hz ÷ 20000 Hz
- Max SPL @ 1m: 133 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 50°
- Transducers Compression Driver: 1.4'' neo, 4.0'' v.c
- Woofer: 15'' neo, 3.5'' v.c
Input/Output
- Input signal: bal/unbal
- Input connectors: XRL, Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
- Mic. Input Sensitivity: -32 dBu
Processor Section
- Crossover Frequencies: 650 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Boost, Mic/Line
- Power Section
- Total Power: 1400 W Peak, 700 W RMS
- High frequencies: 400 W Peak, 200 W RMS
- Low frequencies: 1000 W Peak, 500 W RMS
- Cooling: Convection
- Connections: Powercon IN/OUT
Standard Compliance
- CE Marking: Yes
Cabinet
- Cabinet/Case Material: Baltic birch plywood
- Hardware: 5 x M10, 4 x quick lock
- Handles: 2 Side
- Pole Mount/Cap: Yes
- Grille: Steel
- Colour: Black

Physical & Dimensions

Height: 707 mm / 27.83 inches
Width: 418 mm / 16.46 inches
Depth: 402 mm / 15.83 inches
Weight: 24 kg / 52.91 lbs

What's in the Box?

1x NX45A 15" Active 2-Way Multipurpose Speaker CLASS-D Amp 700W

Product Downloads

USER MANUAL NX 45-A
