P18 18

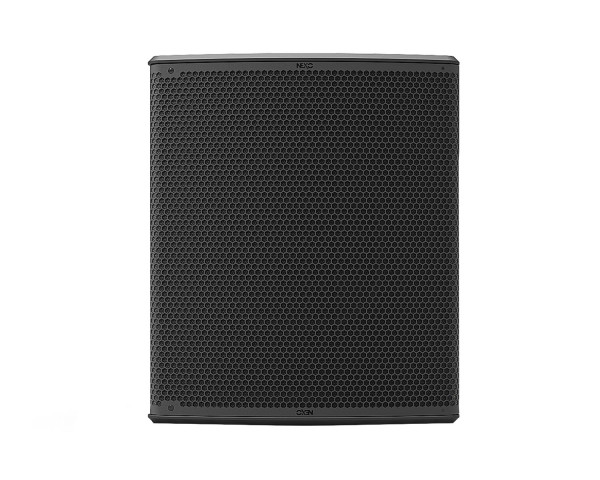

NEXO P18 18 Active/Passive Touring Loudspeaker 8Ω Black - Image 2

Price:: RRP: £4,342.70 inc VAT
Code:: NEXP18
Manufacturer Code:: 01P..18U
Brand:: NEXO

Main Features

Compact, low-profile, curvilinear enclosure
18” LF Neodymium driver and 4” diaphragm HF driver in a coaxial configuration
Variable HF directivity
Switchable Active/Passive modes (Touring and TIS versions)
142dB peak SPL (Active Mode)
Threaded inserts on the back and on both sides for connection of mounting accessories

P18 18" Active/Passive Touring Loudspeaker 8Ω Black

Housed in a curvilinear enclosure of custom birch and poplar plywood, the P18 employs a purpose-designed 18″ LF Neodymium driver and 4″ diaphragm HF driver in a coaxial configuration. The compact cabinet measures just 680mm x 579mm x 446mm, and can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. The back plate holds two Speakon® connectors (plus one each on both sides) and a recessed switch to change the cabinet from 2-way passive to 2-way active mode. Installation versions are available in custom RAL colours (Passive only) and feature a fixed cloth-covered grille, universal rigging points on the sides and bottom of the cabinet and 2-core cable for audio input to ensure IP54 protection index. TIS versions feature touring handles and connectivity, with cloth-covered grilles.

Product Features

Compact, low-profile, curvilinear enclosure
18” LF Neodymium driver and 4” diaphragm HF driver in a coaxial configuration
Variable HF directivity
Switchable Active/Passive modes (Touring and TIS versions)
142dB peak SPL (Active Mode)
Threaded inserts on the back and on both sides for connection of mounting accessories
Stand fitting on both sides
4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
Touring, installation and TIS versions

Product Specifications

Frequency Response @-6 dB: 50 Hz to 20 kHz
Sensitivity 1W@1m: 107 dB SPL Nominal
Peak SPL@1m: 140 dB Peak (Passive mode) / 142 dB Peak (Active mode)
Operating Voltage: 55 Vrms (180 Vpeak)
HF Dispersion (according to flanges): 60°x60° (Default) - 90°x40° (with 90x40 flange) - 50°~90°x40° (with PS flange)
Crossover Frequency: 50 Hz, 85 Hz, 120 Hz
Nominal Impedance: Active: (8 Ohms LF + 8 Ohms HF) / Passive: 8 Ohms
Recommended Power: Active: (1200 to 1900 W LF + 600 to 950 W HF) / Passive: 1200 to 1900 W
Components: 1 x Coaxial Neodymium LF 18” 8 Ohms long excursion & HF 4“ 8 Ohms
Number of ways (Touring and TIS version): 2 ways passive (2+/2- P18) or 2 ways active (1+/1- LF, 2+/2- HF) switchable
Number of ways (Install version): 2 ways passive
Connectors (Touring and TIS version): 4 x NL4, 4 poles connectors (1 per handle + 2 at the back)
Connectors (Install version): 1 x Cable gland with 2 cores cable
Rigging points: 1 x universal accessory fit on each side + 1 x on the bottom
Material: Custom made bent plywood of baltic birch and poplar
Finish: Black or White structural paint
Front Finish (Touring version): Magnelis® front grille + back fabric behind
Front Finish (Install and TIS version): Acoustic fabric fitted front grille
Height x Width x Depth: 680mm x 579mm x 446mm (26.8” x 22.8” x 17.6”)
Weight: Net: 33 kg (73 lbs)
Operating temperature range: 0°C - 40 °C (32° F - 104° F)
Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
System Operation:
- Recommended powering solution: NXAMP4x4mk2 Powered TDcontroller: up to 3 x P18 per channel
- Optional powering solution: DTDcontroller + DTDAMP4x0.7 (Bridged) : 1 x P18 per bridged channels
- NXAMP4x1mk2 Powered TDcontroller (Bridged): up to 2 x P18 per bridged channels
- NXAMP4x2mk2 Powered TDcontroller: 1 x P18 per channel
