Parle TCM-X Ceiling AVB Beamtracking Microphone Black

« return to previous page

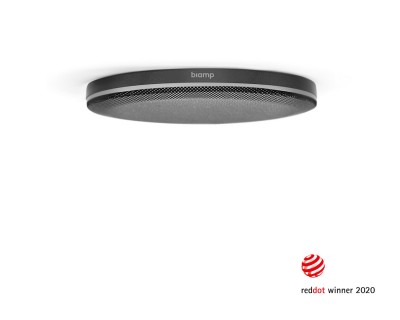

Biamp Parle TCM-X Ceiling AVB Beamtracking Microphone Black - Main Image
Price:
RRP: £2,421.60 inc VAT
Code:
BIAPTCMXB
Manufacturer Code:
911.0507.900
Brand:
Biamp

Quantity required:

Main Features

  • Measures 5.90 inches (150 mm) in diameter
  • Mounts directly to the ceiling to virtually disappear in room
  • Beamtracking technology actively tracks and intelligently mixes conversations
  • Four 90-degree zones for full 360-degree room coverage
  • Uses only one channel of AEC per mic
  • Finish: Black
Share:

Parlé TCM-X Ceiling - White

The Parlé TCM-X is an AVB low-profile ceiling microphone for use in Tesira® systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. The TCM-X microphone delivers the same level of performance as our other Beamtracking microphones in a sleek, unobtrusive design that mounts to the ceiling. The TCM-X actively tracks and intelligently mixes conversations from around the table, allowing far-end participants to experience the conversation as they would a face-to-face meeting. Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX to the network box. A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX). The TCM-X is well suited for a variety of room types and sizes with 10’ ceilings or lower that require high-quality audio solutions and low profile or unobtrusive microphones.

Product Features

  • Measures 5.90 inches (150 mm) in diameter
  • Mounts directly to the ceiling to virtually disappear in room
  • Beamtracking technology actively tracks and intelligently mixes conversations
  • Four 90-degree zones for full 360-degree room coverage
  • Network box includes DSP for Beamtracking
  • Uses only one channel of AEC per mic
  • Single cable connection via CAT cable
  • Beamtracking technology works out-of-box without any lobe aiming or room mapping
  • LED mute status indicator
  • Available in either black or white
  • Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
  • Additional RJ-45 connection
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems’ five-year warranty

Product Specifications

General

  • Microphone Technology: 16-Element Digital Array
  • Frequency Response (150 Hz - 16 kHz): ± 3dB
  • Polar Pattern: Active Beamformed
  • SNR (at 1kHz, 94dBSPL A-Weighted): > 76dB
  • Maximum SPL (at < 1% THD): 109dB
  • Dynamic Range (THD+N < 1%): 92dB, A-Weighted
  • Indicators: Mute Indicator (Green/Red LED)
  • Digital Interface: Custom/Proprietary
  • Connector: RJ-45
  • Finish: Black

Overall Dimensions

  • Height (excluding ceiling mount): 0.6 inches (15 mm)
  • Diameter: 5.90 inches (150 mm)
  • Weight: 0.7 lbs (340 g)
