PC-1865BS 5" Ceiling Speaker Fixed Fire Dome 6W BS5839-8/EN54-24

« return to previous page

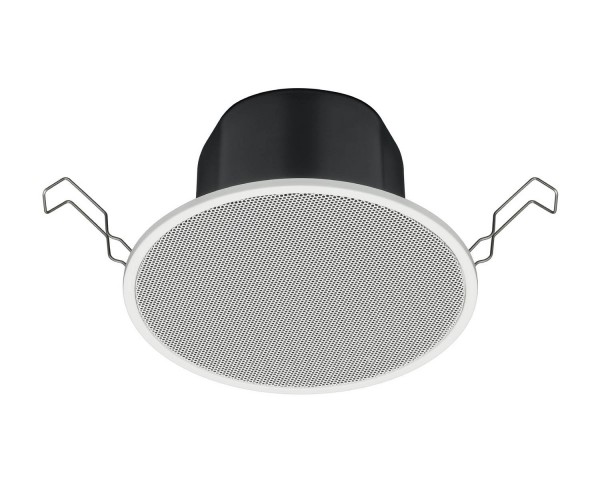

TOA PC-1865BS 5 Ceiling Speaker Fixed Fire Dome 6W BS5839-8/EN54-24 - Main Image
Price:
RRP: £36.00 inc VAT
Code:
TOAPC1865BS
Manufacturer Code:
PC-1865BS
Brand:
TOA

Quantity required:

Main Features

  • Flat front panel
  • Quick and easy installation
  • Fire dome made of steel
  • Ceramic screw terminal block and thermal fuse
  • 6 W rated input
  • 12 cm speaker chassis
Share:

PC-1865BS 5" Ceiling Speaker Fixed Fire Dome 6W BS5839-8/EN54-24

The ceiling speakers of the PC-series are suitable for announcements and BGM system use in high quality. The speaker's design harmonizes with modern architecture and decor. The PC-1865BS is equipped with a fire dome to protect it from fire and to prevent fire from spreading through the ceiling. Thus, the speaker is designed according to British Standard BS 5839-8: 2008 and EN54-24.

Product Features

  • Flat front panel
  • Quick and easy installation
  • Fire dome made of steel
  • Ceramic screw terminal block and thermal fuse
  • 6 W rated input
  • 12 cm speaker chassis

Product Specifications

  • Frequency response:  200 Hz - 20 kHz
  • Connection:  2-Steatite connector (3 pole); 1 Screw connection for Earth
  • Sensitivity (1 W, 1 m):  95 dB (500 Hz - 5 kHz, pink noise)
  • Maximum sound pressure level (1 m) (value):  100 dB
  • Speaker component:  12 cm cone-type
  • Rated input (High Impedance):  6 W (100 V), 3 W (70 V)
  • Tappings: 100 V: 1.7 kΩ (6 W) / 3.3 kΩ (3 W) / 6.7 kΩ (1.5 W) / 13 kΩ (0.8 W)
  • Mounting hole:  150 mm
  • Dimensions (ø x D):  180 x 95.6 mm
  • Weight:  0.86 kg
  • Operating temperature:  -10 °C to +50 °C
  • Finish
    • Steel plate, paint, traffic white (RAL 9016 or equivalent)
    • Grille: Steel net, paint, white (RAL 9016 or equivalent)
    • Fire dome: Steel plate, paint, black
