Wireless Microphone Systems
We do our best to keep healthy stocks across the many Wireless Microphone System SKUs but in the rare case where we don't have your required system in stock, please contact our sales team as we can often make your product to order by borrowing the system components (transmitters, receivers or mics) from other stocked systems.
Shopping Basket
The product has been added to your basket
Main Features
Equipped with metal grille and ABS resin Baffle
Low profile thin panel fits snugly against ceiling

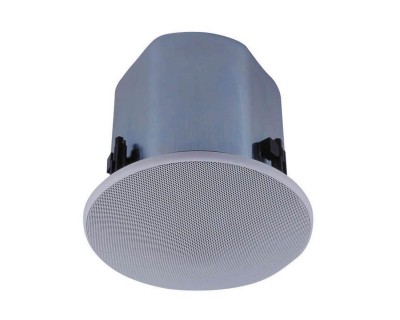

Designed for simple installation, the TOA PC-1868W-EB ceiling mount speaker is equipped with a metal grille and an ABS resin Baffle. The finely crafted design with thin panel does not detract from venue architecture or interior decor
The speaker can be easily installed thanks to its spring catch method — this saves time and money. It is ideal for use in any kind of public building where paging and BGM are broadcasted.
Product Features
Equipped with metal grille and ABS resin Baffle
Low profile thin panel fits snugly against ceiling
Easy installation with spring catch mechanism
Suitable for paging and PGM broadcast
Ideal for public buildings
Weight: 675 g
Product Specifications
General
Rated Input: 6 W (for 100 V Line), 3 W (for 70 V Line)
Rated Impedance: 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10kΩ (1 W): Internal wiring must be changed]
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W): Internal wiring must be changed])
Sensitivity: 90 dB (1 m, 1 W, 330 – 3,300 Hz Pink noise)
Frequency Response: 100 Hz – 16 kHz
Speaker Component: 12 cm cone-type speaker
Applicable Cable: Solid copper wire or 7-core twisted copper wire, More than ø0.8 mm or 0.5 mm²
Finish: Baffle: ABS resin, pure white
Grille: Net, pure white, paint
Physical & Dimensions
Dimensions: ø180 x 11(exposed section) + 110 (D) mm
Dimension for Fixing Hole: ø150 (mounting hole) x 50 (maximum ceiling thickness) mm
