PC-2360EN 6

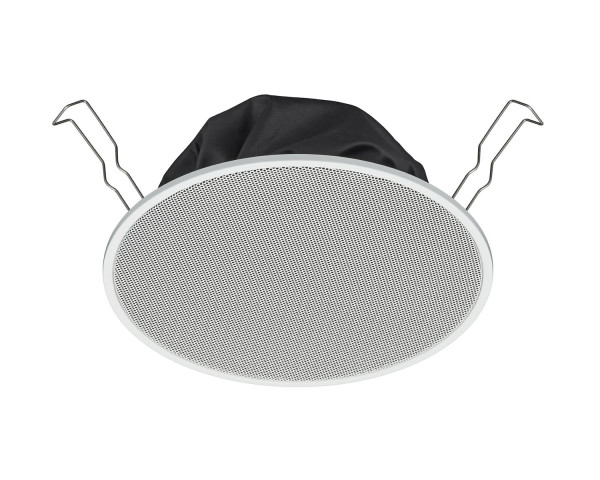

TOA PC-2360EN 6 Ceiling Speaker with Dust Bag 6W EN54-24 - Image 2

Price:: RRP: £48.00 inc VAT
Code:: TOAPC2360EN
Manufacturer Code:: PC-2360EN
Brand:: TOA

Main Features

Flat front panel
Quick and easy installation
Dripping-water protection
Snap in cable terminal
6 W rated input
16 cm speaker chassis

PC-2360EN 6 Ceiling Speaker with Dust Bag 6W EN54-24

The ceiling speakers of the PC-series are suitable for announcements and BGM system use in high quality. The speaker's design harmonizes with modern architecture and decor. The PC-2360EN is designed according to EN54-24.

Product Features

Flat front panel
Quick and easy installation
Dripping-water protection
Snap in cable terminal
6 W rated input
16 cm speaker chassis

Product Specifications

Frequency response: 60 Hz - 20 kHz (peak -20 dB)
Connection: Push wire connection (Bridging terminal - 2 branch type)
Sensitivity (1 W, 1 m): 94 dB 500 Hz - 5 kHz, pink noise
Max. SPL (value): 99dB
Speaker component: 16 cm cone-type
Rated input (high impedance): 6 W (100 V), 3 W (70 V)
Tappings:
- 100 V: 1.7 kΩ (6 W) / 3.3 kΩ (3 W) / 6.7 kΩ (1.5 W) / 13 kΩ (0.8 W)
- 70 V: 1.7 kΩ (3 W) / 3.3 kΩ (1.5 W) / 6.7 kΩ (0.8 W) / 13 kΩ (0.4 W)
Mounting Hole: 200 mm
Max. SPL (1 m): 99 dB (6 W, 100 Hz - 10 kHz, pink noise)
Dust / Water protection: IP 21C
Operating temperature: -10 °C to +50 °C
Dimensions: 230 x 76 mm (Ø x D)
Finish: Steel plate, paint, traffic white (RAL 9016 or equivalent), Grille: Steel net, paint, white (RAL 9016 or equivalent)
