PC-275AB-EB 2x5" Surface-Mount Ceiling Speaker BS5839 / EN54-24

« return to previous page

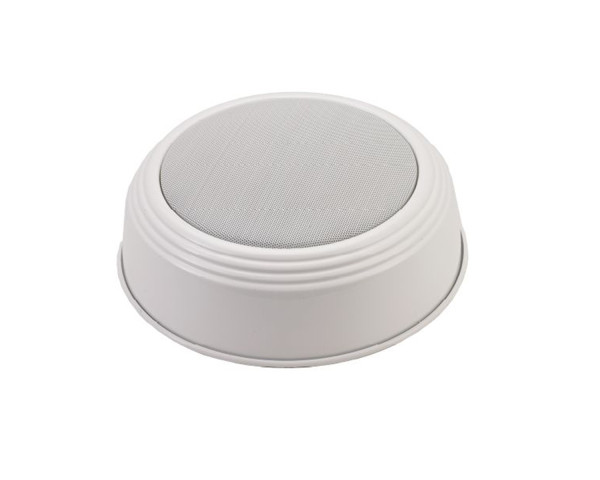

TOA PC-275AB-EB 2x5 Surface-Mount Ceiling Speaker BS5839 / EN54-24 - Main Image
TOA PC-275AB-EB 2x5 Surface-Mount Ceiling Speaker BS5839 / EN54-24 - Image 1
TOA PC-275AB-EB 2x5 Surface-Mount Ceiling Speaker BS5839 / EN54-24 - Image 2
Price:
RRP: £126.00 inc VAT
Code:
TOAPC275ABEB
Manufacturer Code:
PC-275AB-EB
Brand:
TOA

Quantity required:

Main Features

  • A/B wiring
  • Only 86 mm depth
  • 2 separate 100 V transformers and 6 W speakers
  • Quick-mount
  • Certified according to EN 54-24
  • Compliant with BS-5839-8: 2013
Share:

PC-275AB-EB 2x5" Surface-Mount Ceiling Speaker BS5839 / EN54-24

Surface-mount ceiling speaker, 100V line, IP32 and EN54-24 rated.

Product Features

  • A/B wiring
  • Only 86 mm depth
  • 2 separate 100 V transformers and 6 W speakers
  • Quick-mount
  • Certified according to EN 54-24
  • Compliant with BS-5839-8: 2013

Product Specifications

  • Frequency response:  180 Hz - 20 kHz (-10 dB from sensitivity)
  • Connection:  ceramic screw terminals x 2
  • Sensitivity (1 W, 1 m):  90 dB 2x 0.5 W
  • Max. SPL (value):  100dB
  • Speaker component:  2 x 12 cm cone-type
  • Rated input (high impedance):  2 x 6 W (100 V)
  • Tappings:  100 V: 2 x 1.67 kΩ (6 W) / 3.33 kΩ (3 W) / 6.67 kΩ (1.5 W)
  • Mounting Hole:  220 mm
  • Max. SPL (1 m):  100 dB 2 x 6 W
  • Dust / Water protection:  IP 32
  • Operating temperature:  -10 °C to +55 °C
  • Dimensions:  274.4 x 86.5 mm (Ø x D)
  • Finish:  Steel, paint, traffic white (RAL 9016 or equivalent)
