PGADRUMKIT4 PG Alta Drum Microphone Kit 4 PGA56/PGA57/PGA52

« return to previous page
Shure PGADRUMKIT4 PG Alta Drum Microphone Kit 4 PGA56/PGA57/PGA52 - Main Image
Shure PGADRUMKIT4 PG Alta Drum Microphone Kit 4 PGA56/PGA57/PGA52 - Image 1
Shure PGADRUMKIT4 PG Alta Drum Microphone Kit 4 PGA56/PGA57/PGA52 - Image 2
Price:
RRP: £306.00 inc VAT
Code:
SHUPGADRUMKIT4
Manufacturer Code:
PGADRUMKIT4
Brand:
Shure

Quantity required:

Main Features

  • 4 Piece drum microphone kit
  • Covers all you need in performance and recording applications
  • Included Microphones: 1 x PGA52, 2 x PGA56 and 1 x PGA57
  • Includes XLR Cables and Protective Carry Case
Share:

PGADRUMKIT4 PG Alta Drum Microphone Kit 4 PGA56/PGA57/PGA52

Drum microphone kit includes 4 drum microphones to cover all you need in performance and recording applications. Includes 1 PGA52 kick drum microphone, 2 PGA56 drum microphones, 1 PGA57 instrument microphone, 2 drum mounts, and 4 XLR cables.

Product Features

PGA52 Features

  • Tailored microphone cartridge design
  • Swivel joint with quick release latch
  • Cardioid polar pattern
  • Updated industrial design with black metallic finish and grille for unobtrusive visual presence
  • Legendary Shure quality design and construction for exceptional performance in rigorous environments

PGA56 Features

  • Flat-response microphone cartridge design
  • Swivel joint with quick release latch
  • Cardioid polar pattern
  • Updated industrial design with black metallic finish and grille for unobtrusive visual presence

PGA57 Features

  • Tailored microphone cartridge design for clear reproduction of sound source
  • Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
  • Updated industrial design with black metallic finish and grille for unobtrusive visual presence

Product Specifications

PGA52 Specifications

  • Type: Dynamic (moving coil)
  • Frequency Response:  50 to 12, 000 Hz
  • Polar Pattern:  Cardioid
  • Output Impedance:  150 ohms
  • Sensitivity at 1 kHz, open circuit voltage:  -55 dBV/Pa¹ (1.75 mV)
  • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
  • Weight:  454 g (16.01oz.)
  • Connector:  Three-pin professional audio (XLR), male

PGA56 Specifications

  • Type:  Dynamic (moving coil)
  • Frequency Response:  50 to 15, 000  Hz
  • Polar Pattern:  Cardioid
  • Output Impedance:  200 Ω
  • Sensitivity at 1 kHz, open circuit voltage:  -57 dBV/Pa¹ (1.45 mV)
  • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
  • Weight:  287 g (10.12oz.)
  • Connector:  Three-pin professional audio (XLR), male

PGA57 Specifications

  • Type:  Dynamic (moving coil)
  • Frequency Response:  70 to 15,000 Hz
  • Polar Pattern:  Cardioid
  • Output Impedance:  150 Ω
  • Sensitivity at 1 kHz, open circuit voltage: -56.5 dBV/Pa (1.5 mV) (1 Pa=94 dB SPL)
  • Polarity:  Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
  • Weight:  280 g (9.88 oz.)
  • Connector:  Three-pin professional audio (XLR), male
  • Operating Temperature:  -20 to 165 °F (-29 to 74 °C)
  • Operating Humidity:  0 to 95%

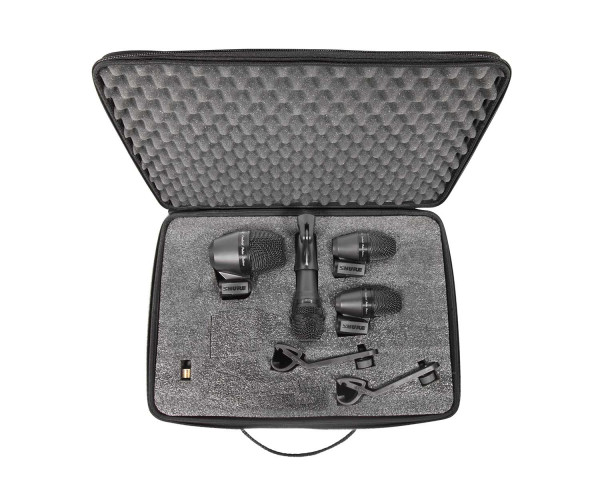

What's in the Box?

  • 1 x PGA52 kick drum microphone
  • 2 x PGA56 drum microphones
  • 1 x PGA57 instrument microphone
  • 2 x Drum mounts
  • 4 x XLR-XLR cables
  • 1 x carrying case

Product Downloads
