Pixie Curve 60 Indoor 90° Curved RGB LED Pixel Strip 25

« return to previous page

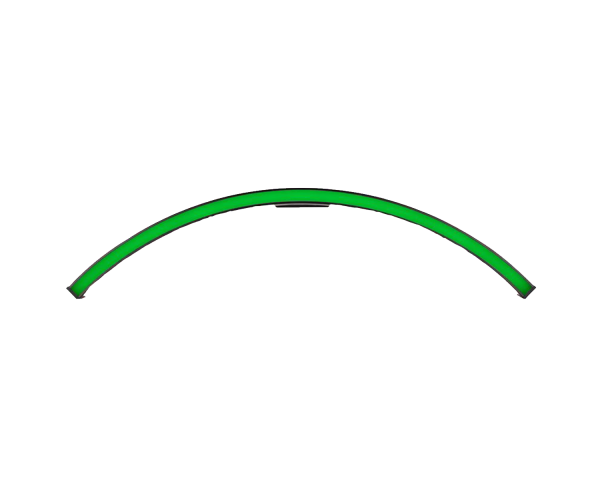

ADJ Pixie Curve 60 Indoor 90° Curved RGB LED Pixel Strip 25 - Main Image
ADJ Pixie Curve 60 Indoor 90° Curved RGB LED Pixel Strip 25 - Image 1
ADJ Pixie Curve 60 Indoor 90° Curved RGB LED Pixel Strip 25 - Image 2
ADJ Pixie Curve 60 Indoor 90° Curved RGB LED Pixel Strip 25 - Image 3
ADJ Pixie Curve 60 Indoor 90° Curved RGB LED Pixel Strip 25 - Image 4
ADJ Pixie Curve 60 Indoor 90° Curved RGB LED Pixel Strip 25 - Image 5
ADJ Pixie Curve 60 Indoor 90° Curved RGB LED Pixel Strip 25 - Image 6
Price:
RRP: £240.00 inc VAT
Code:
ADJ1226200075
Manufacturer Code:
1226200075
Brand:
ADJ

Quantity required:

Main Features

  • SMD RGB 3-in-1, APA-102C LEDs
  • Color Resolution: 8 bits per color (24 bit per pixel)
  • Viewing Angle: 120 x 120 degrees
  • Pixels Per Fixture: 60 pixels
  • Pixel Pitch (pixel center-to-center) 16.5mm
Share:

Pixie Curve 60 Indoor 90° Curved RGB LED Pixel Strip 25"

The Pixie Curve 60 is an indoor, 90-degree curved, LED pixel batten that adds another creative element to the current line-up of Pixie Series fixtures. It’s powered by sixty (60) tri-color RGB SMD LEDs with a 16.5mm pixel pitch, and is controlled and powered by a Pixie Driver unit.

Product Features

  • SMD RGB 3-in-1, APA-102C LEDs
  • Color Resolution: 8 bits per color (24 bit per pixel)
  • Viewing Angle: 120 x 120 degrees
  • Pixels Per Fixture: 60 pixels
  • Pixel Pitch (pixel center-to-center) 16.5mm
  • PWM (Pulse Width Modulation): 44,000Hz
  • 50,000 Hours Life

Product Specifications

Connectors:

  • 4-pin Power/Data Input & Output

Dimensions & Weight:

  • Length: 36.4” (924mm)
  • Width: 1.3” (32mm)
  • Height: 3.1” (79mm)
  • Weight: 2.0 lbs. (1.2kg)

Power:

  • DC24V
  • Max Power Consumption: 12W

Thermal:

  • Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
  • Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications & IP Rating:

  • CE
  • cETLus (Pending)
  • FCC
  • IP65

What's in the Box?

  • Round clear cover (x1)
  • 10.6" (0.27m) 4-pin Power/Data Cable (x1)
  • Adapter Bracket (x1)
