Pixie Driver 2000 V2 Driver for up to 2040 Pixels on Pixie Strip

« return to previous page

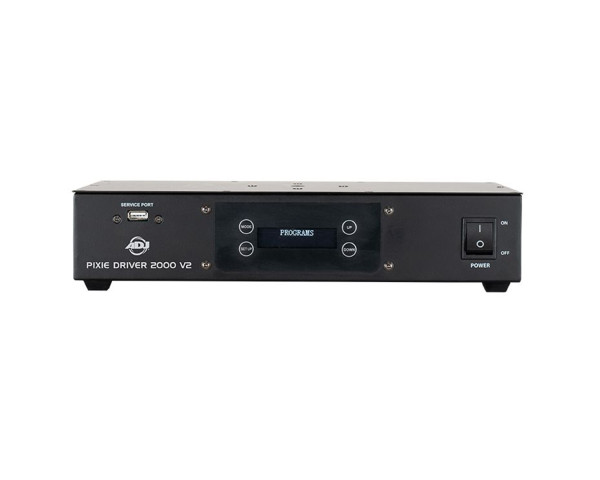

ADJ Pixie Driver 2000 V2 Driver for up to 2040 Pixels on Pixie Strip - Main Image
ADJ Pixie Driver 2000 V2 Driver for up to 2040 Pixels on Pixie Strip - Image 1
ADJ Pixie Driver 2000 V2 Driver for up to 2040 Pixels on Pixie Strip - Image 2
ADJ Pixie Driver 2000 V2 Driver for up to 2040 Pixels on Pixie Strip - Image 3
ADJ Pixie Driver 2000 V2 Driver for up to 2040 Pixels on Pixie Strip - Image 4
ADJ Pixie Driver 2000 V2 Driver for up to 2040 Pixels on Pixie Strip - Image 5
Price:
RRP: £514.80 inc VAT
Code:
ADJ1226200065
Manufacturer Code:
1226200065
Brand:
ADJ

Quantity required:

Main Features

  • Designed Specifically for the ADJ Pixie Strip 30, 60 and 120
  • Provides Easy and Versatile Control Options
  • On-Board Manual Dimming and Strobe Control
  • Full Pixel Mapping Control
  • 2040 Pixels via Kling-Net
  • 340 Pixels via Art-Net and sACN
Share:

Pixie Driver 2000 V2 Driver for up to 2040 Pixels on Pixie Strip

ADJ's Pixie Driver 2000 V2 is designed specifically for the ADJ Pixie Strip 30, 60, and 120 series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control.

Product Features

  • Designed Specifically for the ADJ Pixie Strip 30, 60 and 120
  • Provides Easy and Versatile Control Options
  • On-Board Manual Dimming and Strobe Control
  • Full Pixel Mapping Control
  • 2040 Pixels via Kling-Net
  • 340 Pixels via Art-Net and sACN

Product Specifications

Control Features

  • Power / data supply for ADJ Lighting Pixie Strip 30, Pixie Strip 60, and Pixie Strip 120
  • Manual RGB mode
  • Internal programs
  • Manual Dimming and Strobe Control
  • Full Pixel Mapping Control
  • 2,040 Pixels via Kling-Net
  • 340 Pixels via Art-Net and sACN (streaming ACN)
  • OLED screen with 4-button menu
  • USB port for Firmware Updates

Control Quantity

  • KlingNet:  34 Pixie Strip 30; 17 Pixie Strip 60; 8 Pixie Strip 120
  • ArtNet:  170 pixels max each port
  • sACN:  170 pixels max each port

Connections

  • Power:  PowerLock Input
  • Two KlingNet / Artnet ethernet ports
  • Two 4-pin DC24V power/data outputs to Pixie Strips

Mounting Options

  • Bolt to add a clamp to hang from truss (clamp and truss not included)
  • Includes 19-inch rack mount ears
  • Safety eye

Electrical

  • Multi-voltage operation:  AC 100-240V, 50/60Hz
  • Power Consumption:  400W max
  • -4°F to 113°F (-20°C to 45°C)

Physical & Dimensions

  • Dimensions (LxWxH):  18.9” x 7.11” x 2.91” / 480x180.8x74mm
  • Weight:  5.6 lbs. / 2.5 kg.

What's in the Box?

  • PowerLock power cable
  • 19-inch rack mount ears
  • 4-pin data cable
