PMC16 Personal Monitoring Controller

« return to previous page

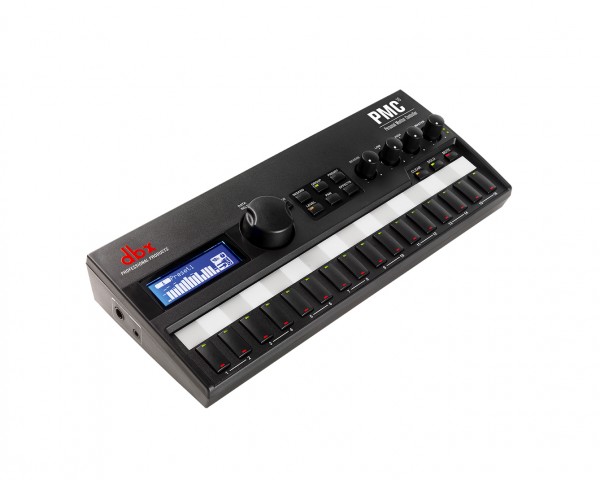

dbx PMC16 Personal Monitoring Controller - Main Image
dbx PMC16 Personal Monitoring Controller - Image 1
dbx PMC16 Personal Monitoring Controller - Image 2
dbx PMC16 Personal Monitoring Controller - Image 3
Price:
RRP: £1,140.00 inc VAT
Code:
DBXPMC16
Manufacturer Code:
DBX0128
Brand:
dbx

Quantity required:

Main Features

  • The PMC16 Personal Monitor Controller
  • A 16 channel personal monitor controller
  • Allows the user to create a custom mix from 16 channels of audio
  • Designed to be used with the dbx TR1616 or any other BLU link compatible device
  • Multiple PMC16s can be daisy chained using CAT5e cable allowing each user to receive 16 channels
  • Comprises a 16 channel mixer section with full control of levels, panning, effect send levels, muting, and soloing
Share:

The dbx PMC16 Personal Monitor Controller

The PMC16 is a 16 channel personal monitor controller which allows the user to create a custom mix from 16 channels of audio. Designed to be used with the dbx TR1616 or any other BLU link compatible device, the PMC16 allows for monitoring with headphones, in-ear monitors, powered monitors, or traditional wedge monitors. Multiple PMC16s can be daisy chained using CAT5e cable allowing each user to receive 16 channels of high-resolution digital audio and create their own personalized mix to suit their monitoring needs. The PMC16 comprises a 16 channel mixer section with full control of levels, panning, effect send levels, muting, and soloing.

Onboard Lexicon© reverb provides the finishing touch. The PMC16’s output processing section includes: stereo width control, wedge monitor compensation EQ, high and low master EQ, master level control, and dbx limiting. With a Setup Wizard for ease of configuration, full 16 channel level metering, channel grouping, 16 preset locations for future recall of configurations and mixes, and an intuitive yet powerful user interface, PMC16 gives you the power to dial in YOUR mix exactly as YOU want it, in real time.

Product Features



  • 16 Channel Monitor Mixer with Level, Pan, Mute, Solo, & Reverb Send Control
  • 16 Preset Locations for Mix & Configuration Recall
  • LCD Display with 16 Channel Metering
  • Built-In Lexicon© Reverb
  • dbx PeakStopPlus™ Limiting
  • Global High & Low EQ
  • Global Master Level Control
  • Global Stereo Width Control
  • BLU Link High Bandwidth, Fault Tolerant Digital Audio Bus
  • XLR & 1/4” Stereo or Mono Outputs
  • 1/8” & 1/4” Headphone Outputs
  • Setup Wizard for Easy Configuration
  • Supports 48 kHz & 96 kHz Sampling Rates
  • Channel Linking, Grouping, & Multi-Select Capabilities
  • Supports up to 60 PMC16s on a Single BLU Link Ring
  • Built-In Sturdy Mic Stand Mount
  • USB Port for Firmware Updates

Product Specifications

Audio Performance

  • Frequency Response: +0/-0.2 dB 20 Hz – 20 kHz (Measured at 0 dBu output level)
  • Dynamic Range:
    • >108 dB unweighted 22 Hz – 22 kHz bandwidth
    • >112 dB A-weighted
  • THD+N: <.005% 20 Hz – 20 kHz (Measured at 0 dBu output level)
  • Crosstalk: <97 dB 20 Hz – 20 kHz

BLU link Digital Audio Bus

  • Bit-Depth: 24-bit
  • Sample Rate: 48 kHz or 96 kHz
  • Connectors: 2 x RJ45 Ethernet connectors
  • Maximum Cable Length: 100 m/328 ft between devices (Category 5e cable)
  • Maximum Number of Nodes: 60
  • Latency Per Node: 4/Fs [0.08 ms @ 48 kHz, 0.04 ms @ 96 kHz]

Analog Outputs (XLR & 1/4”)

  • Maximum Output Level: 20 dBu
  • Output Impedance: 40 Ω

Headphone Outputs (1/8” & 1/4”)

  • Power/Impedance: 900 mW per channel at 50 Ω (1/8” and 1/4” jacks are in parallel)

Power

  • Adapter: PS0920DC-01 (100-240 V AC, 50/60 Hz)
  • Power Consumption: 18 W
  • Power Requirements: 9 V DC 2.0 A

Weight/Dimensions

  • Product Weight: 2.26 lb (1.03 kg)
  • Power Supply Weight: 0.31 lb (0.14 kg)
  • Dimensions:
    • 2 1/8” (H) x 11 5/16” (W) x 4 13/16” (D)
    • 5.4 cm (H) x 28.7 cm (W) x 12.2 cm (D)
