PRO7/SW Wall-Mount Hearing Loop Amplifier with Display 500m2

« return to previous page

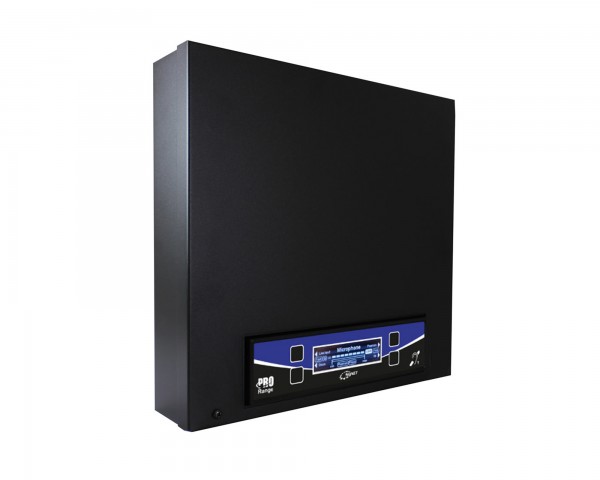

SigNET PRO7/SW Wall-Mount Hearing Loop Amplifier with Display 500m2 - Main Image

SigNET PRO7/SW Wall-Mount Hearing Loop Amplifier with Display 500m2 - Image 1

SigNET PRO7/SW Wall-Mount Hearing Loop Amplifier with Display 500m2 - Image 2

Price:: RRP: £605.46 inc VAT
Code:: SIGPRO7SW
Manufacturer Code:: PRO7/SW
Brand:: SigNET

Main Features

Clear & intuitive LCD graphical interface allows simple set-up of input levels, output current, phantom power and metal compensation
500m2 coverage
2 x XLR mic/line inputs (selectable)
Digital optical ‘Toslink’ connector facilitates easy connection to TVs, soundbars, etc
Outreach connector allows up to 10 of our revolutionary audio input utility plates to be added
Free-standing option also available

Full Description

PRO7/SW Wall-Mount Hearing Loop Amplifier w/ Display 500m2

The SigNET PRO Range comprises of constant current, single and dual induction hearing loop amplifiers, each with an LCD graphical display. The dual loop amplifiers have a built-in phase shifter, designed for ‘phased array’ induction loop systems.

This wallmounted model is designed to cover areas up to 500m2.

Features

Product Features

Clear & intuitive LCD graphical interface allows simple set-up of input levels, output current, phantom power and metal compensation
500m2 coverage
2 x XLR mic/line inputs (selectable)
Digital optical ‘Toslink’ connector facilitates easy connection to TVs, soundbars, etc
Outreach connector allows up to 10 of our revolutionary audio input utility plates to be added
Free-standing option also available
Anti-tamper lock function prevents unauthorised adjustment of system settings
5 year warranty as standard
Class D output stage for maximum efficiency and very high output
Superior analogue audio processing with a powerful CPU and cutting-edge technology provide life-like speech and first class music reproduction
Short circuit protection against loop faults for increased reliability
Fault relay & graphical display provide clear indication of operation and fault status
Industry leading dual action automatic gain control compensates for poor microphone technique
Line level output for recording or daisy-chaining multiple units to cover larger areas.
Designed and manufactured in the UK.

Technical Specs

Product Specifications

General

Type: Wall-mount (requires permanent connection to Mains)
Coverage: 500m2, i.e. rooms up to approx. 22m x 22m (PDA7/SD, PDA7/SW, PDA7/DD, PDA7/DW)
Inputs
- 2 x XLR mic/line (selectable)
- 1 x Outreach
- 1 x Optical TOS Link digital receiver
Outputs
- Loop 1
- Line Out
- Fault Relay
- Phase Shift 2 x 900 phase shifted Selectable (on/off);
Controls
- Sensitivity Level Controls
- Line In
- Mic
- 12V Phantom
- Outreach
- Optical
- Metal Comp
- Drive 1
- Loop
- Phase Shift
Indicators: LCD display with 4 membrane control buttons

Physical & Dimensions

Dimensions: 298H x 308W x 74D mm
Weight: 3.35kg

See the User Manual in the Downloads tab for full specifications.

Accessories

What’s in the Box?

1 x Hearing loop amplifier
1 x Accessory pack containing instructions (this document), two ferrite beads (for the loop cables), pluggable connectors (for the outreach, line out, relay, line in & microphone terminals), ‘hearing loop fitted’ sticker.
