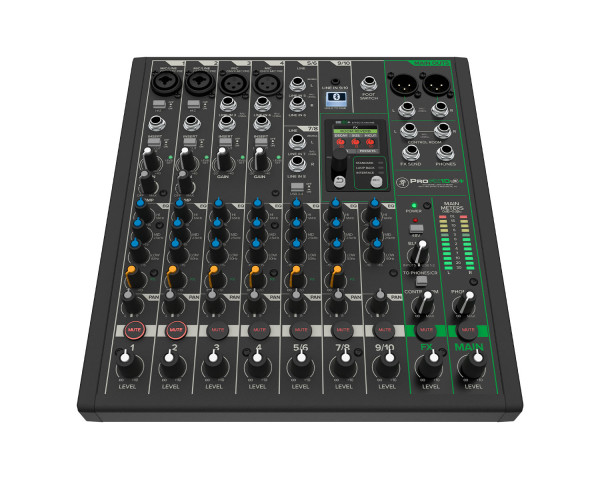

ProFX10v3+ 10ch Professional Effects Mixer with USB + Bluetooth

Product Features

• 4 Onyx mic pres with up to 60 dB of gain and ultra-low noise performance
• High-resolution GigFX+™ effects engine
• Full-colour LCD display for editing and saving effects presets
• 24-Bit / 192 kHz 2x4 USB-C audio interface
• Three recording modes: Standard, Loopback and Interface
• Bi-directional Bluetooth® for music playback and caller integration
• 3-band EQ on all channels
• One-knob compression on channels 1 and 2
• Hi-Z switches allow direct connection of instruments
• 100 Hz low-cut filter and 48V phantom power on all mic channels
• Stereo 1/8” input on channel 9/10
• Headphone output with separate level and blend control
• Easily blend between monitoring your computer output and a latency-free feed from the mixer
• Waveform OEM™ recording software Included
• Legendary Built-Like-A-Tank design
• Solid steel chassis
• Tough ABS side protection

Product Specifications

Noise Characteristics

• Equivalent Input Noise (EIN)
• (150 Ω Source Impedance, 20 Hz to 20 kHz)
  • Mic in to Insert Send out, max gain:  –126 dBu
• Residual Output Noise
  • All outputs, master levels off, all channel levels off:  –95 dBu
  • All outputs, master levels unity, one channel level unity:  –80 dBu

Frequency Response

• Mic input to any output (gain at unity, +0 dB / –1 dB):  20 Hz to 30 kHz

Distortion

• (22 Hz to 80 kHz bandwidth)
• Mic in to Main Out (+4 dBu output):  <0.03%

Attenuation and Crosstalk

• Adjacent Inputs @1 kHz:  –90 dB
• Inputs to Outputs @1 kHz:  –80 dB
• Fader Off @1 kHz:  –75 dB
• Mute Switch / Break Switch Mute @ 1 kHz:  –90 dB

Common Mode Rejection Ratio (CMRR)

• Mic in to Main out, max gain, 1 kHz:  70 dB

Maximum Levels

• All inputs:  +22 dBu
• Main Mix XLR:  +28 dBu
• All other outputs:  +22 dBu

Impedances

• Mic in:  3.3 kΩ
• Channel Insert Return:  10 kΩ
• All other inputs:  ≥20 kΩ
• Phones out:  25 Ω
• All other outputs:  120 Ω Unbalanced, 240 Ω Balanced

Equalization

• Low:  ±15 dB @ 80 Hz
• Mid ±15 dB @ 2.5 kHz
• High:  ±15 dB @ 12 kHz
• Low Cut Filter:  18 dB/octave @ 100 Hz

Maximum Voltage Gain (EQ Flat)

• Mic Input Channel to
  • Insert Output:  60 dB
  • 1/4" Main Output:  80 dB
  • XLR Main Output:  86 dB
  • 1/4" Sub Output:  80 dB
  • Aux Output (Pre-Fader):  80 dB
  • Aux Output (Post-Fader):  90 dB
  • FX Send:  90 dB
  • FX Send [ProFX10v3+]:  80 dB
  • USB Output:  70 dB
• Mono Line Input Channel to
  • Insert Output:  40 dB
  • 1/4" Main Output:  60 dB
  • XLR Main Output:  66 dB
  • 1/4" Sub Output:  60 dB
  • Aux Output (Pre-Fader):  60 dB
  • Aux Output (Post-Fader):  70 dB
  • FX Send:  70 dB
  • FX Send [ProFX10v3+]:  60 dB
  • USB Output:  50 dB
• Stereo Line Input Channel to
  • 1/4" Main Output:  20 dB
  • XLR Main Output:  26 dB
  • 1/4" Sub Output:  20 dB
  • Aux Output (Pre-Fader):  20 dB
  • Aux Output (Post-Fader):  30 dB
  • FX Send:  30 dB
  • FX Send [ProFX10v3+]:  20 dB
  • USB Output:  10 dB
• 1/8" Input to
  • 1/4" Main Output:  40 dB
  • XLR Main Output 46 dB 1/4" Sub Output 40 dB Aux Output (Pre-Fader):  40 dB
  • Aux Output (Post-Fader):  50 dB
  • FX Send:  50 dB
  • FX Send [ProFX10v3+]:  40 dB
  • USB Output:  30 dB
• USB Input to
  • XLR Main Output:  46 dB

Digital Effects

• Number of Presets:  12

Meters

• Main L/R Mix
• Two columns of 8 segments each:   OL, +15, +10, +6, +3, 0 (0 dBu), –2, –4, –7, –10, –20, –30

USB

• Format:  USB 2.0
• I/O:  1 Stereo Input, 2 Stereo Outputs
• A/D/A:  24 bit, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz

Phantom Power

• 48 VDC to all Mic channels simultaneously

AC Power Requirements

• Power Consumption:  30 watts (ProFX12v3+)
• Universal AC Power Supply:  100 – 240 VAC, 50 – 60 Hz
• Power Connector
  • ProFX6v3+, ProFX10v3+:  12VDC @ 2A Class I Hard-Wired Wall Mount Adapter
  • ProFX12v3+:  3-Pin IEC Line Cord

Physical Properties (product)

• Height:  3.3 in / 84 mm
• Width:  10.7 in / 272 mm
• Depth:  11.9 in / 302 mm
• Weight:  4.9 lb / 2.2 kg
