Pro-Iso Stereo +4dB to -10dB Converter and Isolator

« return to previous page

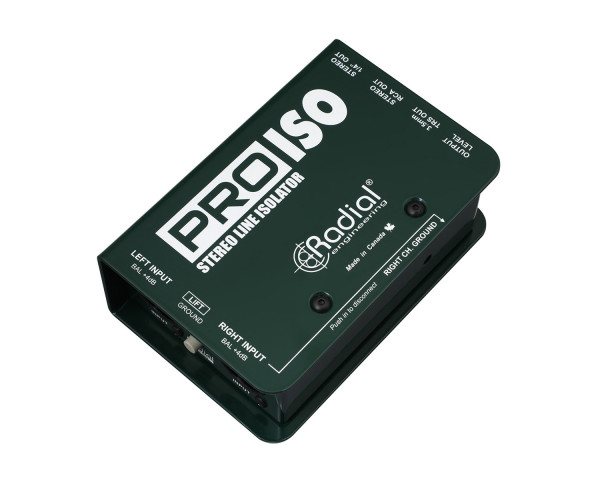

Radial Pro-Iso Stereo +4dB to -10dB Converter and Isolator - Main Image

Radial Pro-Iso Stereo +4dB to -10dB Converter and Isolator - Image 1

Radial Pro-Iso Stereo +4dB to -10dB Converter and Isolator - Image 2

Radial Pro-Iso Stereo +4dB to -10dB Converter and Isolator - Image 3

Radial Pro-Iso Stereo +4dB to -10dB Converter and Isolator - Image 4

Radial Pro-Iso Stereo +4dB to -10dB Converter and Isolator - Image 5

Price:: RRP: £232.58 inc VAT
Code:: RADPROISO
Manufacturer Code:: R800-1150-00
Brand:: Radial

Main Features

Stereo pro-to consumer audio interface
RCA, 3.5mm and ¼” outputs, XLR inputs
Variable output control to set optimum levels
Transformer isolated to eliminate hum & buzz
Passive design doesn’t need power
‘Plug & play’ easy-to-use anywhere

The passive design begins with 100% discrete components throughout. A set & forget level control lets you attenuate the input signal to prevent it from overloading the destination device. Output connections include a stereo pair of ¼" connectors, a set of RCAs and a mini 3.5mm (1/8") for interfacing to a mini recorder or lap-top computer. Transformer isolation helps eliminate hum and buzz caused by ground loops while eliminating stray DC currents from flowing.

J-ISO has the smart features of the Pro-ISO but with the added sonic excellence of genuine JENSEN audio transformers. Jensen transformers feature nickel cores for high input levels before saturation, Mu-metal shields for protection against electromagnetic fi elds, 100% isolation to eliminate noise caused by ground loops, virtually zero phase shift and they sound great!

Product Features

Stereo pro-to consumer audio interface
RCA, 3.5mm and ¼” outputs, XLR inputs
Variable output control to set optimum levels
Transformer isolated to eliminate hum & buzz

Applications

Record direct from mixers and mic-preamps
Interface +4dB pro-gear with unbalanced inputs
Recording interface for laptops and MP3 players
Swiss army problem solver and adaptor

Cool stuff

Passive design doesn’t need power
‘Plug & play’ easy-to-use anywhere
Compact and solid to handle abuse
3 year transferable warranty

Product Specifications

Audio circuit type: Passive, transformer based
Transformer: Radial transformer
Number of channels: Stereo (dual mono)
Frequency response: 20Hz ~ 18KHz (+0dB/ -3dB)
Dynamic range: 130dB
Total harmonic distortion: 0.005% @ 1kHz
Phase Deviation: 1.5° @ 100Hz; 3° @ 20Hz
Input Impedance: 1.3k Ohms
Output Impedance: 1.9k Ohms
Common Mode Rejection Ratio: -76dB
Maximum Input: +20dBu @ 1kHz/1% THD+N

Features

Ground lift, Level Control
Input Connectors: Balanced XLR
Output Connectors: 1/4", RCA and 3.5mm TRS unbalanced output

General

Construction: 14 gauge steel chassis
Size (L x W x D): 8.4cm x 12.7cm x 4.8cm (3.3" x 5" x 2")
Weight: 0.7 kg (1.55 lbs)
Shipping size (L x W x D): 10.2cm x 7.6cm x 16.5cm (4" x 3" x 6.5")
Shipping weight: 0.87 kg (1.92 lbs)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
