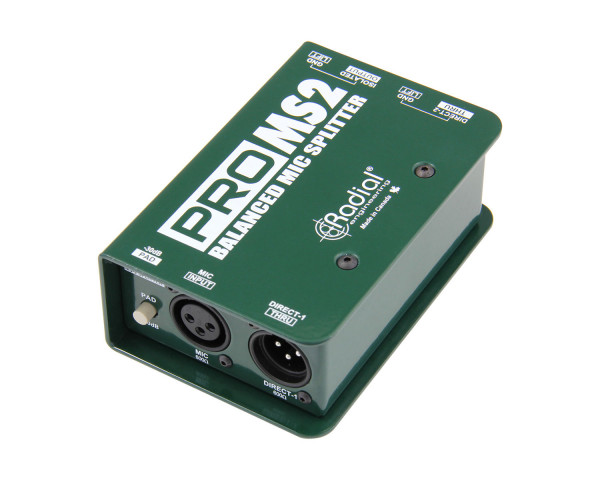

ProMS2 Passive 2-Way Microphone Splitter

« return to previous page
Radial ProMS2 Passive 2-Way Microphone Splitter  - Main Image
Radial ProMS2 Passive 2-Way Microphone Splitter  - Image 1
Radial ProMS2 Passive 2-Way Microphone Splitter  - Image 2
Radial ProMS2 Passive 2-Way Microphone Splitter  - Image 3
Radial ProMS2 Passive 2-Way Microphone Splitter  - Image 4
Price:
RRP: £169.91 inc VAT
Code:
RADPROMS2
Manufacturer Code:
R800-1122-00
Brand:
Radial

Quantity required:

Main Features

  • Send one microphone signal to three destinations simultaneously
  • Eclipse transformer for clean & transparent audio
  • Eliminates hum and buzz caused by ground loops
  • Single isolated output provides optimal noise rejection
  • Audio circuit type:  Passive
  • Transformer:  Eclipse ET-MS10
Share:

ProMS2 Passive 2-Way Microphone Splitter

The ProMS2 is a mic splitter designed to split a single source to multiple destinations simultaneously without signal degradation or noise. A high quality Eclipse transformer inside provides galvanic isolation to eliminate hum and buzz from ground loops, while delivering a wide frequency response and low distortion. Ground lifts on the outputs help further reduce noise, while an input pad allows line-level sources to be connected as well. The ProMS2 can be rack mounted for touring and installation purposes, with up to eight fitting in the Radial J-Rak.

Product Features

  • Send one microphone signal to three destinations simultaneously
  • Eclipse transformer for clean & transparent audio
  • Eliminates hum and buzz caused by ground loops
  • Single isolated output provides optimal noise rejection

Product Specifications

  • Audio circuit type:  Passive
  • Transformer:  Eclipse ET-MS10
  • Frequency response:  20Hz ~ 20KHz (+0dB -1dB)
  • Dynamic range:  >140dB
  • Gain:  -0.5dB
  • Total harmonic distortion:  0.001%
  • Intermodulation Distortion:  0.003%
  • Phase Deviation:  1° @ 20Hz
  • Input Impedance:  2.5K Ohms, unbalanced
  • Output Impedance:  140K Ohms, balanced
  • Common Mode Rejection Ratio:  -115dB at 60Hz
  • Noise:  -140dB
  • Maximum Input:  +26dBu

Features

  • Input pad
  • Input Connectors:  XLR-F
  • Output Connectors:  XLR-M

General

  • Construction:  14-gauge steel chassis & outer shell
  • Size (L x W x D):  5.0" x x
  • Weight:  1.55lb (0.7kg)
  • Shipping weight:  1.92lb (0.87kg)
  • Power:  Passive, no power required
  • Conditions:  For use in dry locations only between 5°C and 40°C
  • Warranty:  Radial 3-year, transferable
