QLXD2/B87A QLXD2 Handheld Transmitter with BETA87A Capsule K51

« return to previous page

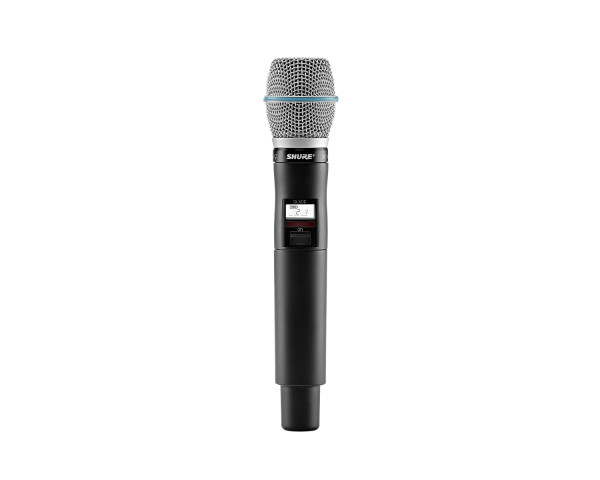

Shure QLXD2/B87A QLXD2 Handheld Transmitter with BETA87A Capsule K51 - Main Image
Shure QLXD2/B87A QLXD2 Handheld Transmitter with BETA87A Capsule K51 - Image 1
Shure QLXD2/B87A QLXD2 Handheld Transmitter with BETA87A Capsule K51 - Image 2
Price:
RRP: £564.00 inc VAT
Code:
SHUQLXD2B87AK51
Manufacturer Code:
QLXD2/B87A=-K51
Brand:
Shure

Quantity required:

Main Features

  • K51 Band: 606-670 MHz
  • QLXD2 Handheld Transmitter with Supercardioid Condenser BETA 87A Capsule
  • 20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
  • Interchangeable Shure microphone capsule
  • 100 meter (330 ft.) line-of-sight operating range
  • AES 256-bit encryption for secure transmission
Share:

QLXD2/B87A QLXD2 Handheld with BETA87A Capsule K51 606-670 MHz

Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD2 handheld transmitter is ideal for wireless vocals in presentation spaces, music venues, and houses of worship. Easy to use, the QLXD2 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All metal construction ensures durability, and a wide selection of compatible microphone choices offer legendary Shure sound signatures.

Product Features

  • 20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
  • Interchangeable Shure microphone capsules, including the legendary SM58®
  • AES 256-bit encryption for secure transmission
  • Over 120 dB of dynamic range – no transmitter gain adjustment needed
  • 1, 10 mW selectable RF output power
  • Up to 9 hours continuous use with 2 x AA alkaline batteries
  • Optional Shure SB900 lithium ion rechargeable battery provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
  • External charging contacts for docked charging
  • Backlit LCD with easy to navigate menu and controls
  • Selectable display mode showing group/channel, frequency, or battery runtime
  • 100 meter (330 ft.) line-of-sight operating range
  • Rugged metal construction
  • Frequency and power lockout

Product Specifications

  • Mic Offset Range:  0 to 21 dB (in 3 dB steps)
  • Battery Type:  Shure SB900A Rechargeable Li-Ion or AA batteries 1.5 V
  • Battery Runtime @ 10 mW:
  • Shure SB900A: up to 10 hours
  • Alkaline:  up to 9 hours
  • Dimensions:  256 mm × 51 mm (10.1 in. × 2.0 in.) L × Dia.
  • Weight:  347 g (12.2 oz.), without batteries
  • Housing:  Machined aluminium
  • Audio Input
    • Configuration:  Unbalanced
    • Maximum Input Level 1 kHz at 1% THD:  145 dB SPL (SM58), typical Note: Dependent on microphone type
  • RF Output
    • Antenna Type: Integrated Single Band Helical
    • Occupied Bandwidth:  < 200 kHz
    • Modulation Type:  Shure proprietary digital
    • Power:  1 mW or 10 mW
