Qt X 800 8-Zone Sound Masking Control Module AVB 2U

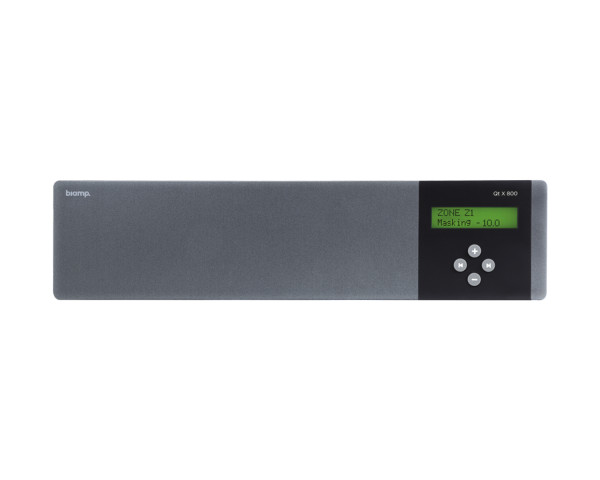

Biamp Qt X 800 8-Zone Sound Masking Control Module AVB 2U - Main Image

Price:: RRP: £1,200.00 inc VAT
Code:: BIAQTX800
Manufacturer Code:: 911.0216.900
Brand:: Biamp

Main Features

Compatible with DynasoundPro™ loudspeakers and emitters
Supports up to eight zones
AVB media network
Two audio inputs for paging and music
Contact closure integrates with fire alarm systems
Front panel with LCD

Full Description

The Qt® X 800/800D control module is a sound masking generator, controller, third-octave band equalizer and amplifier, with two auxiliary audio inputs to allow for distribution of audio from paging controllers and/or (background) music players. The Qt X 800/800D controls sound masking speakers/emitters in both direct-field and indirect (in-plenum) installations—or a mix of both. Each of the eight amplified output speakers/emitters can be independently adjusted for masking and aux audio levels and spectra. Both models feature full compatibility with Biamp’s SageVue™ system management software and can participate in larger Qt X systems. When multiple Qt X controllers are included in a single system audio inputs can be shared across all controllers via AVB.

Features

Product Features

Compatible with DynasoundPro™ loudspeakers and emitters
Supports up to eight zones
AVB media network
Two audio inputs for paging and music
Contact closure integrates with fire alarm systems
Front panel with LCD
Panel lock via software control
Auto-ramping
Event scheduling
Adjustable equalizer for masking and audio inputs
Eight included non-correlated sound masking audio sources (one for each output)
PoE Powered with optional 48V dc input
Built-in clock with system NTP support
Plenum mount bracket included, optional wall or rack mount bracket also available
Dual network ports (media / control)
Third-party control API/Ethernet
CE marked, UL listed, and RoHS compliant
Covered by Biamp Systems’ five-year warranty
Manufactured in the U.S.A.
TAA compliant
GSA eligible
Meets UL 2043 requirements for installation in air handling spaces

Technical Specs

Product Specifications

Equalization
- Sound Masking (100Hz – 10kHz): ISO 1/3 Octave Bands
- Active (125Hz – 8kHz): ISO 1/1 Octave Bands
Number of Non-Correlated Masking Sources 8
Masking Level Adjustment: 0.5dB steps
Audio Inputs
- Input Connector Type: Captive Screw Terminal
- Number of Inputs: 2 (Stereo or Mono)
- Input Level: +24dBu (12.3VRMS max)
- Input Gain Range: 6dB steps
- Input Level Adjustment: 1dB steps
- Input Impedance: 8kΩ
Remote Control
- Connector Type: Captive Screw Terminal
- Input Type: Contact Closure (Normally Open)
- Number of Inputs: 2
- Output Type: Logic Status (5VDC)
- Number of Outputs:
  - 2
  - 2 Channels GPIO
Audio Outputs
- Output Connector Type: Captive Screw Terminal
- Number of Outputs: 8
- Nominal Output Impedance: 4Ω
Power PoE:
- PoE (IEEE 802.3at)
- Connected on Network position 1
Power Optional DC 48V dc @ 1Amp (max)
Included Accessories: Plenum T-bar mount with wire hanger positions
Environmental:
- Ambient Operating Temperature Range: 40 - 104° F (4 – 40° C)
- Humidity: 0-95% relative humidity (non-condensing)
- Altitude: 0-10,000 ft (0-3000m) MSL
Compliance:
- FCC Part 15B (USA)
- UL Listed (USA and Canada)
- CE Marked (Europe)
- RoHS Directive (Europe)
Overall Dimensions
- Height: 3.5 inches (89mm)
- Width: 11 inches (279mm)
- Depth: 3.8 inches (97mm)
- Weight: 2.7 lbs (1.2 kg) (without mounting bracket installed)
