Qt X 805 8-Zone Amplified /8-Zone Pre-Amp Control Module AVB

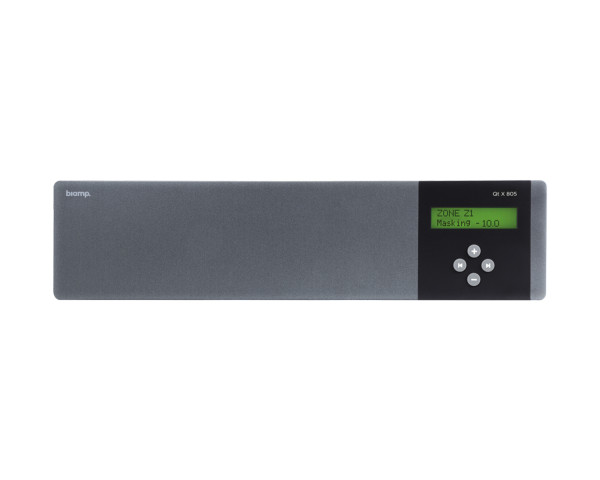

Biamp Qt X 805 8-Zone Amplified /8-Zone Pre-Amp Control Module AVB - Main Image

Price:: RRP: £2,800.80 inc VAT
Code:: BIAQTX805
Manufacturer Code:: 913.0085.900
Brand:: Biamp

Main Features

Compatible with DynasoundPro™ loudspeakers and emitters
Supports up to eight zones of amplified speakers matched with eight zones of pre-amp outputs
AVB media network
Two audio inputs for paging and music
Contact closure integrates with fire alarm systems
Front panel with LCD

Full Description

The Cambridge Qt® X 805/805D control module is a sound masking generator, controller, third-octave band equalizer and amplifier, with two auxiliary audio inputs allowing for audio distribution from paging controllers and/or (background) music players. The Qt X 805/805D controls sound masking speakers/emitters in both direct-field and indirect (in-plenum) installations—or a mix of both. Each of the eight amplified output speakers/emitters can be independently adjusted for masking and aux audio levels and spectra. Both models feature full compatibility with Biamp’s SageVue™ system management software and can participate in larger Qt X systems. When multiple Qt X controllers are included in a single system, audio inputs can be shared across all controllers via AVB.

Features

Product Features

Compatible with DynasoundPro™ loudspeakers and emitters
Supports up to eight zones of amplified speakers matched with eight zones of pre-amp outputs
AVB media network
Two audio inputs for paging and music
Contact closure integrates with fire alarm systems
Front panel with LCD
Panel lock via software control
Auto ramping
Event scheduling
Adjustable equalizer for masking and audio inputs
Eight included non-correlated sound masking audio sources (one for each output)
Built-in clock with system NTP support
Rack mount bracket included, optional wall mount bracket also available
Dual network ports (media / control)
Third-party control API/Ethernet
CE marked, UL listed, and RoHS compliant
Covered by Biamp Systems’ five-year warranty
Manufactured in the U.S.A.
TAA compliant
GSA eligible

Technical Specs

Product Specifications

Equalization
- Sound Masking (100Hz – 10kHz): ISO 1/3 Octave Bands
- Active (125Hz – 8kHz): ISO 1/1 Octave Bands
- Number of Non-Correlated Masking Sources 8
- Masking Level Adjustment: 0.5dB steps
Audio Inputs
- Input Connector Type: Captive Screw Terminal
- Number of Inputs: 2 (Stereo or Mono)
- Input Level: +24dBu (12.3VRMS max)
- Input Gain Range: 6dB steps
- Input Level Adjustment: 1dB steps
- Input Impedance: 8kΩ
Remote Control
- Connector Type: Captive Screw Terminal
- Input Type: Contact Closure (Normally Open)
- Number of Inputs: 2
- Output Type: Logic Status (5VDC)
- Number of Outputs:
  - 2
  - 2 Channels GPIO
Amplified Audio Outputs
- Output Connector Type: Captive Screw Terminal
- Number of Amplified Outputs: 8
- Nominal Output Impedance: 4Ω
Pre-Amplifier Audio Outputs
- Number of Outputs: 8
- Nominal Output Impedance: 207Ω
Power Supply
- Operating Voltage: 100-240VAC 50/60Hz
- Current Draw: 0.5A
- Output: 48VDC @1.04A (50W Max)
- Max. Power Consumption (48VDC): 24W
Environmental:
- Ambient Operating Temperature Range: 40 - 104° F (4 – 40° C)
- Humidity: 0-95% relative humidity (non-condensing)
- Altitude: 0-10,000 ft (0-3000m) MSL
Compliance:
- FCC Part 15B (USA)
- UL Listed (USA and Canada)
- CE Marked (Europe)
- RoHS Directive (Europe)
Overall Dimensions
- Height: 3.5 inches (89mm)
- Width: 11 inches (279mm)
- Depth: 3.8 inches (97mm)
- Weight: 3.8 lbs (1.75 kg) (with rack mount bracket installed)
